Berdiansk (U175), second boat in the Gurza-M class (pr.58155)
Originally appeared at navalanalyses.blogspot.ru
It was December 6th of 2016 when the Ukrainian Naval Forces commissioned their first new naval vessels after decades. The only exception was the Grisha-V class corvette Ternopil (U209) which was commissioned in 2006 and which was later on captured by Russian forces during the Crimean crisis on March 20, 2014. The two boats that entered service on that date, were the first boats of the new Gurza-M class (Project 58155) small armored artillery boats; a larger derivative of the Gurza (Desert Viper) class (Project 58150) boats which serve with the Border Service of Uzbekistan. The boats of the class are like floating infantry fighting vehicles (IFVs) if I could say; they have even gas barrels at the stern similarly to modern Ukrianian/Russian tanks! They remind also a lot the river monitors but their displacement if far much less than them, they are lighter armored and carry less weapons (see for example the Romanian Mihail Kogălniceanu-class river monitor). The boats are designed by the State Research and Design Shipbuilding Centre (SRDSC) of Ukraine and being built by PJSC Leninska Kuznya Plant, headquartered in Kiev, Ukraine. The Gurza is considered a product of UKROBORONPRO, the association of multi-product enterprises in all sectors of the Ukrainian defense industry.

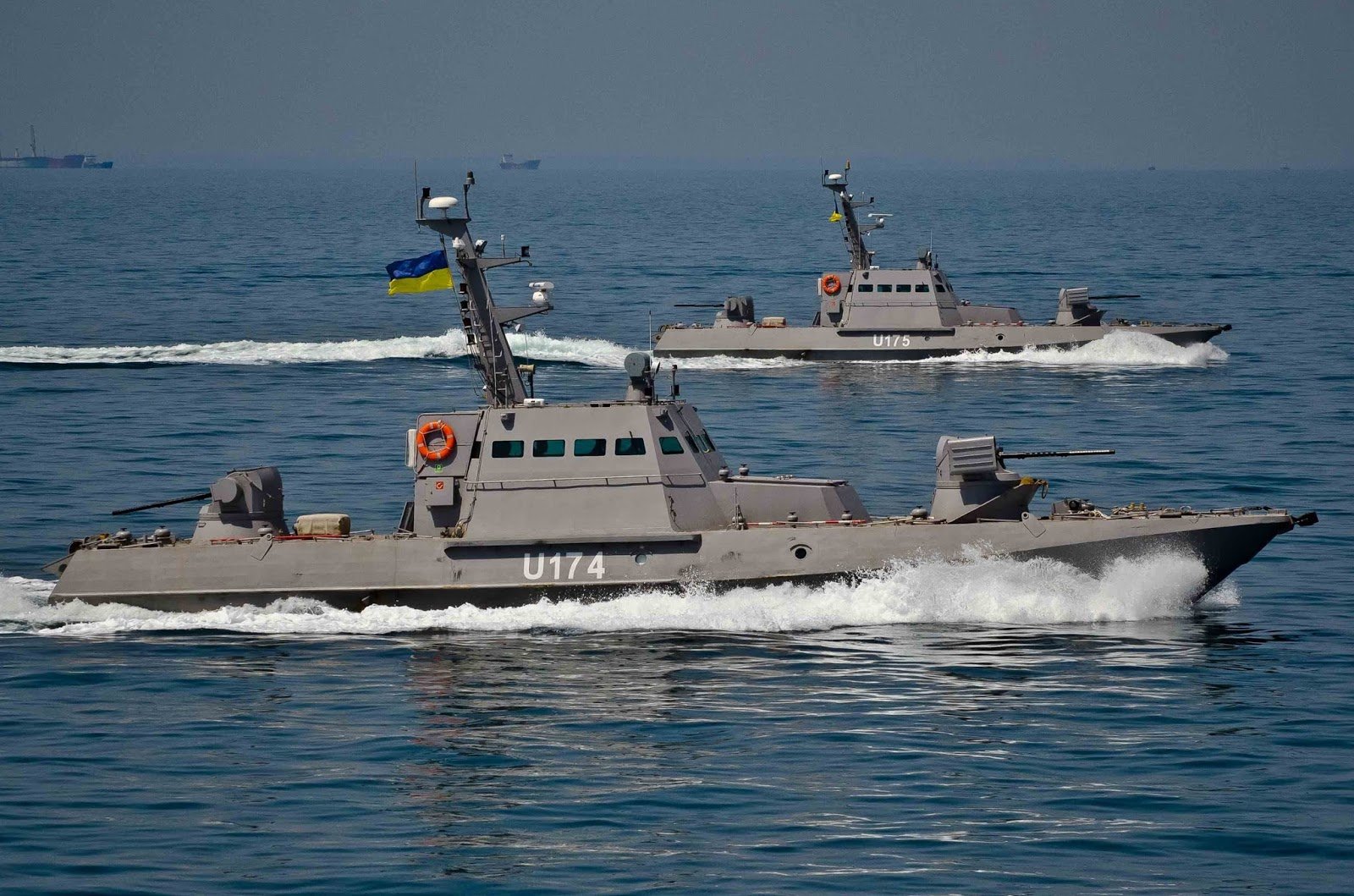

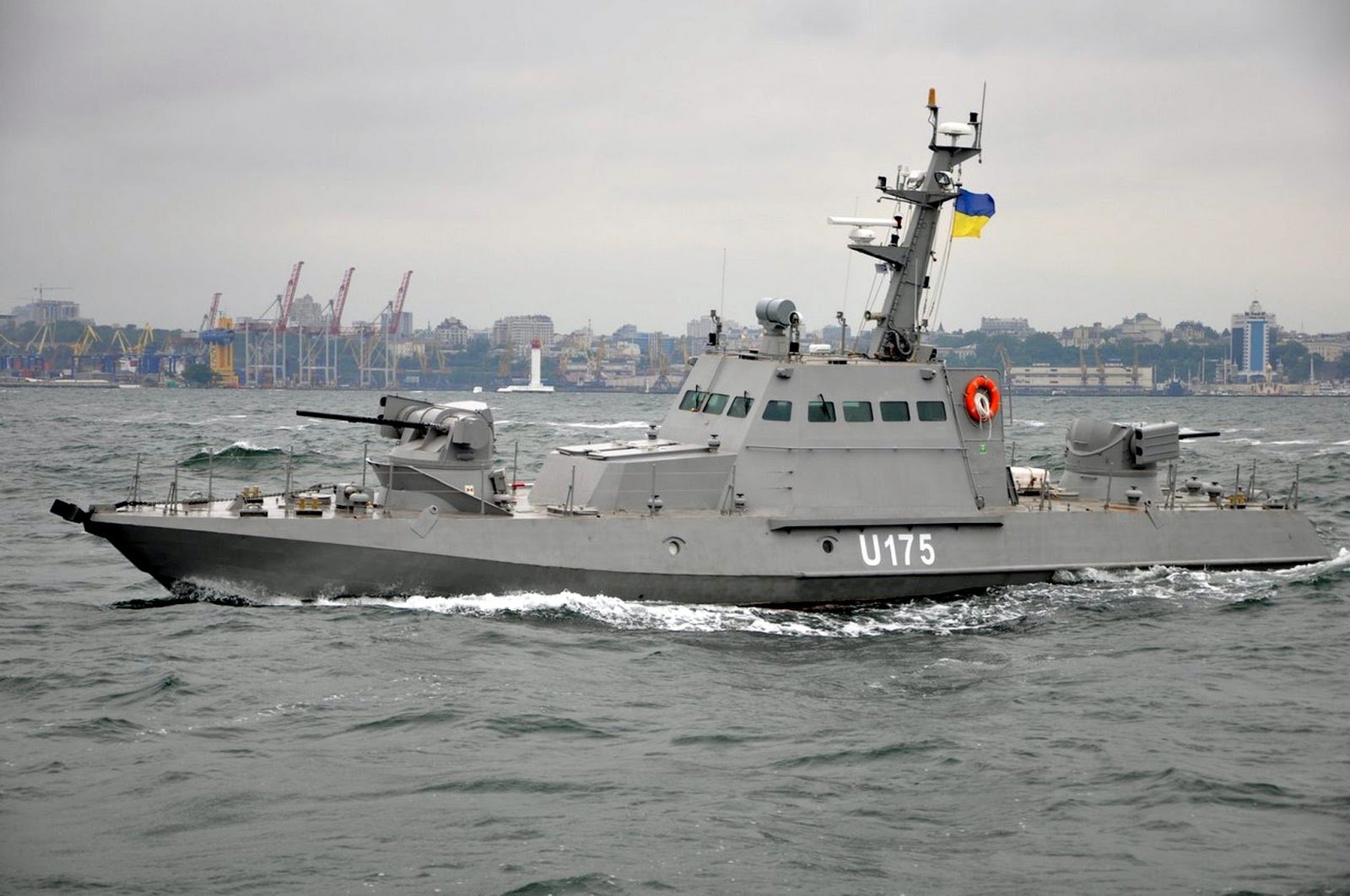

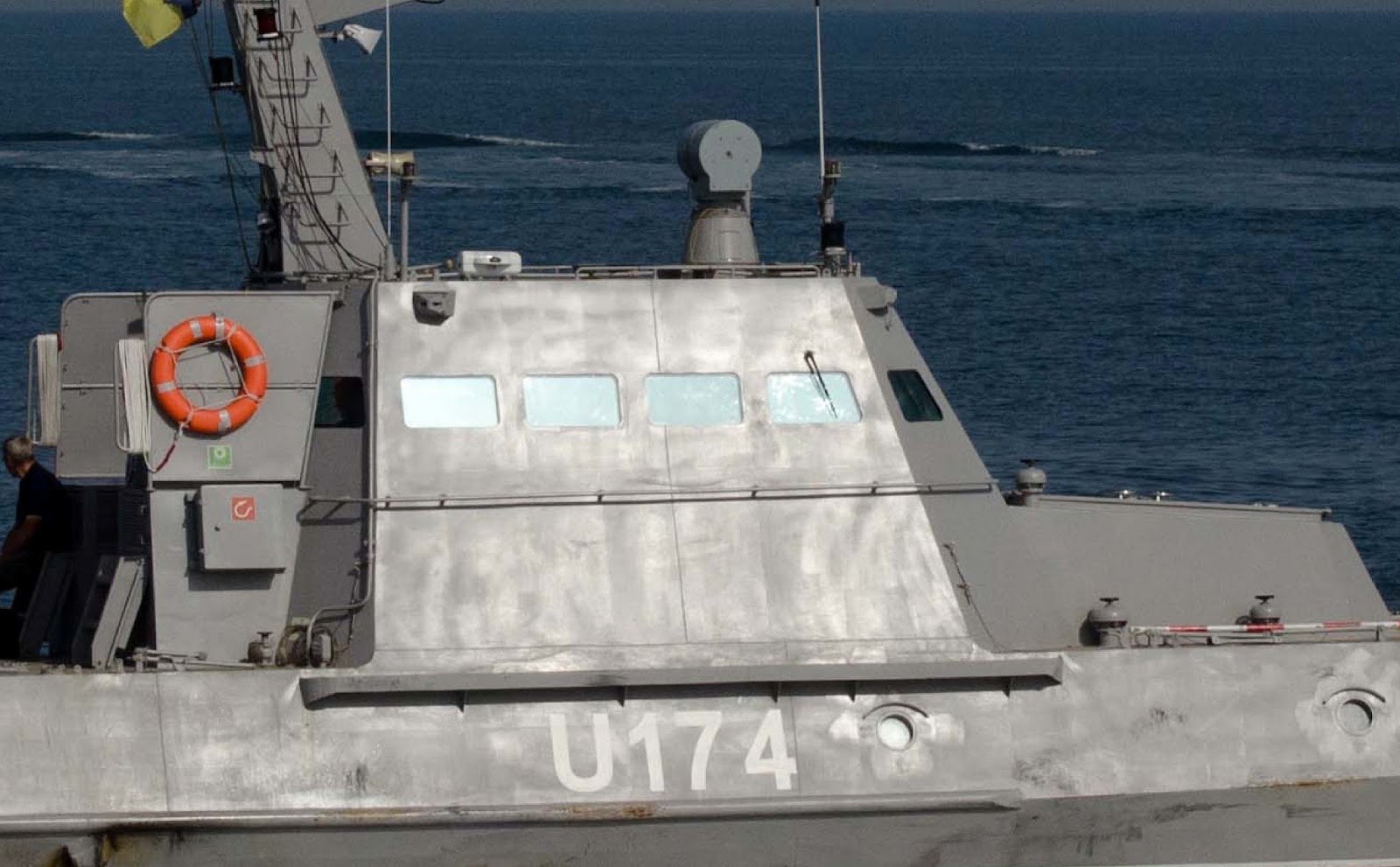

Akkerman (U174) and Berdiansk (U175) first two boats in the class.
Photo: Ministry of Defense of Ukraine
The first two keels were laid in October 2012 but the whole project was frozen for two years. Then the PJSC Leninska Kuznya Plant resumed the construction of the two boats in October 2014 and they were officially launched in November of 2015. Four (4) more boats were were laid in April 2016 and launched in June of 2017. All of them are currently under sea trials.

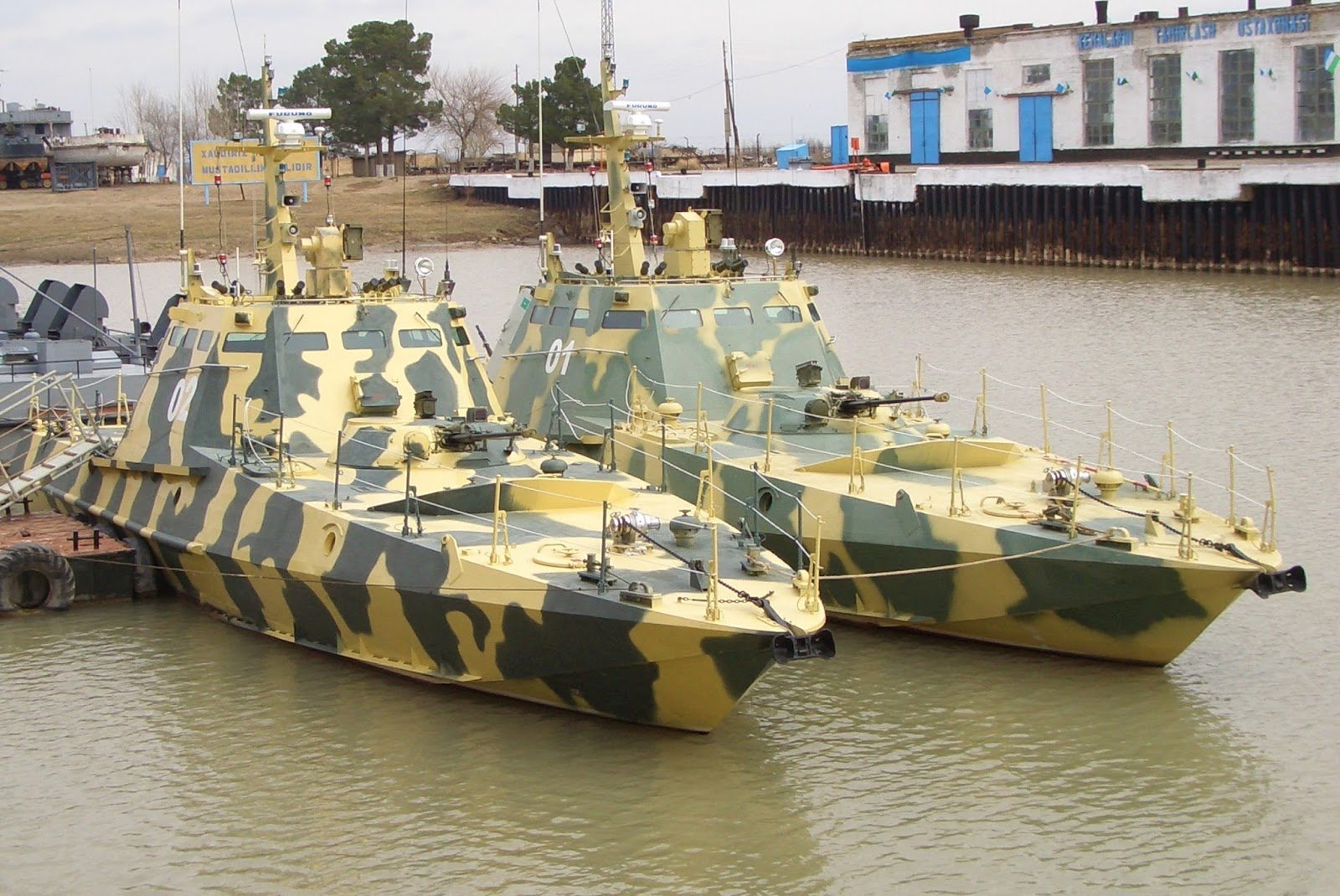

The two Gurza class armored artillery boats of the Border Service of Uzbekistan

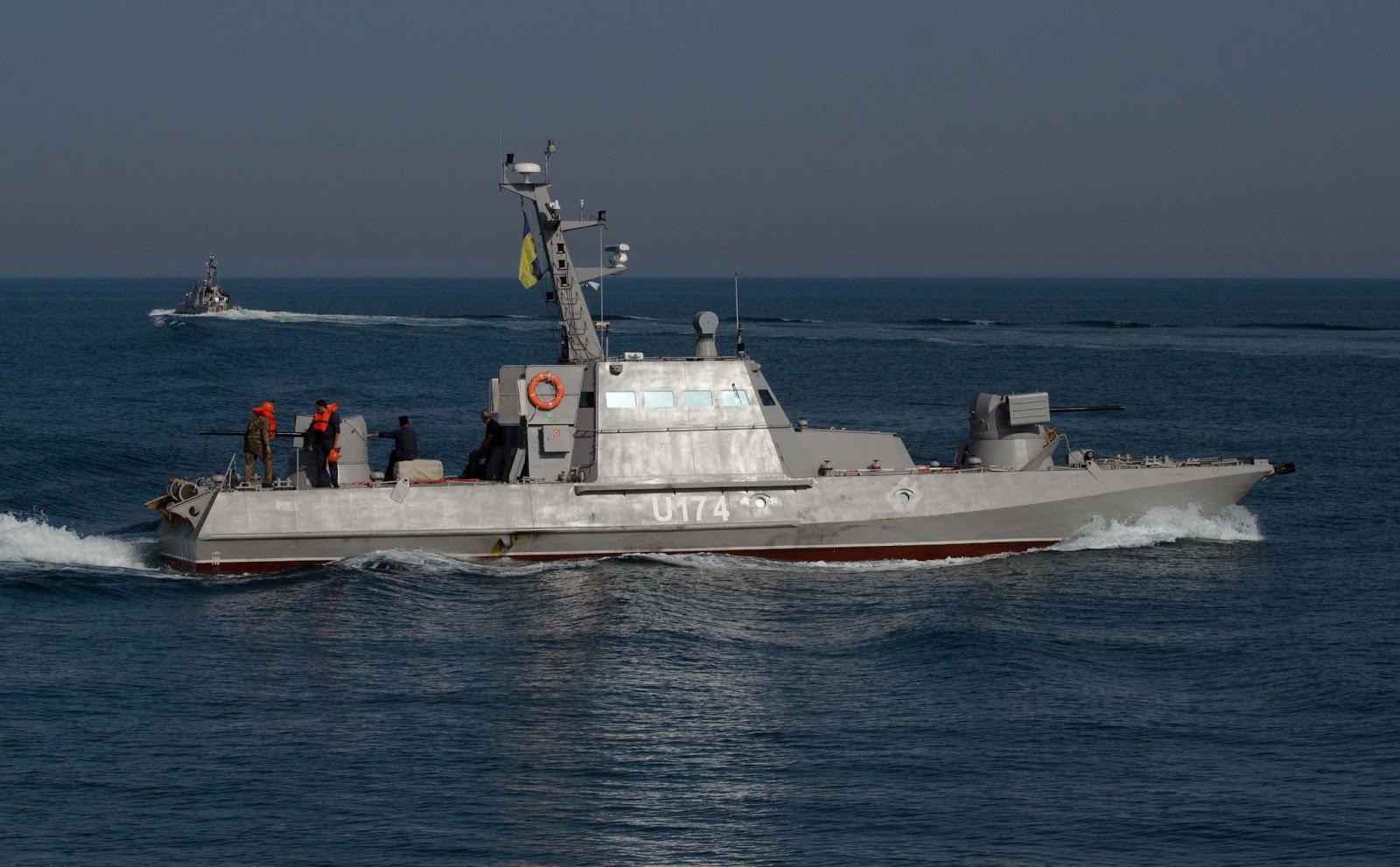

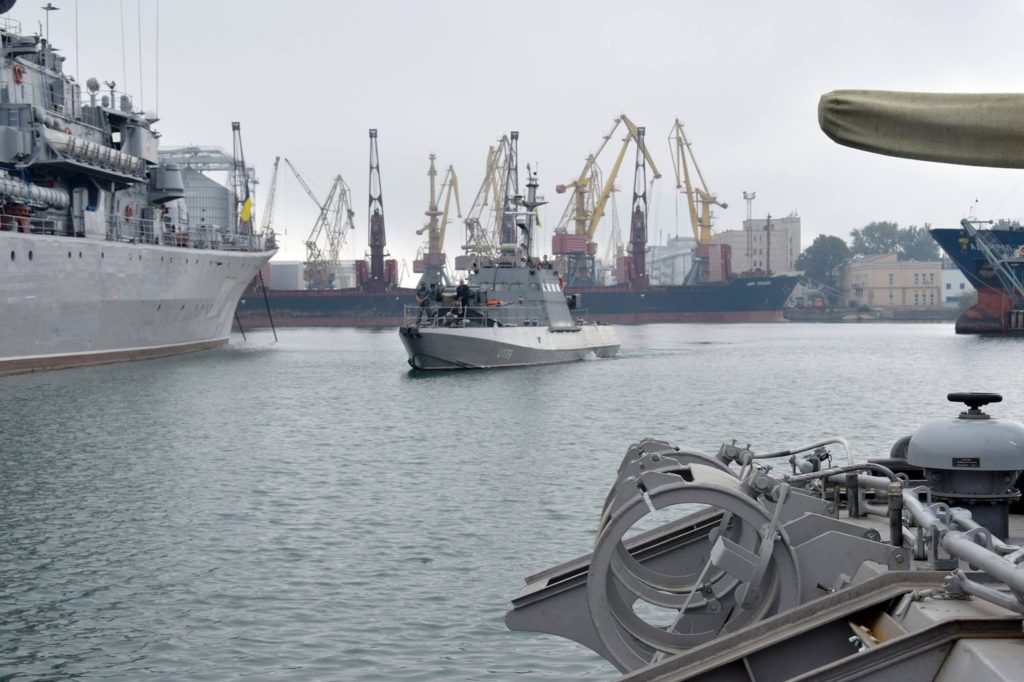

The lead boat in the class. Photo: Ministry of Defence of Ukraine

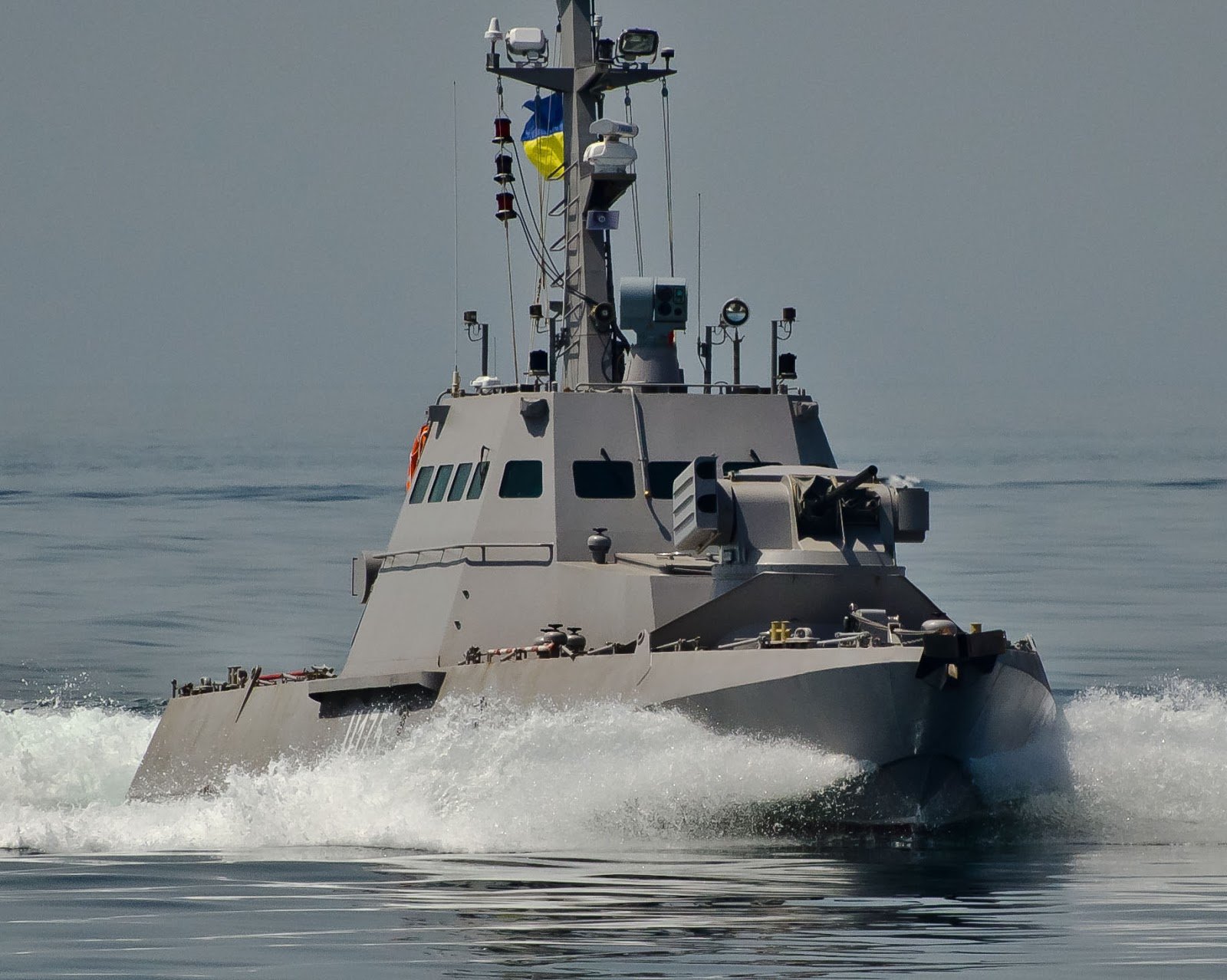

Stern view of two Gurza-M class boats. Photo: Oleg Chubuk

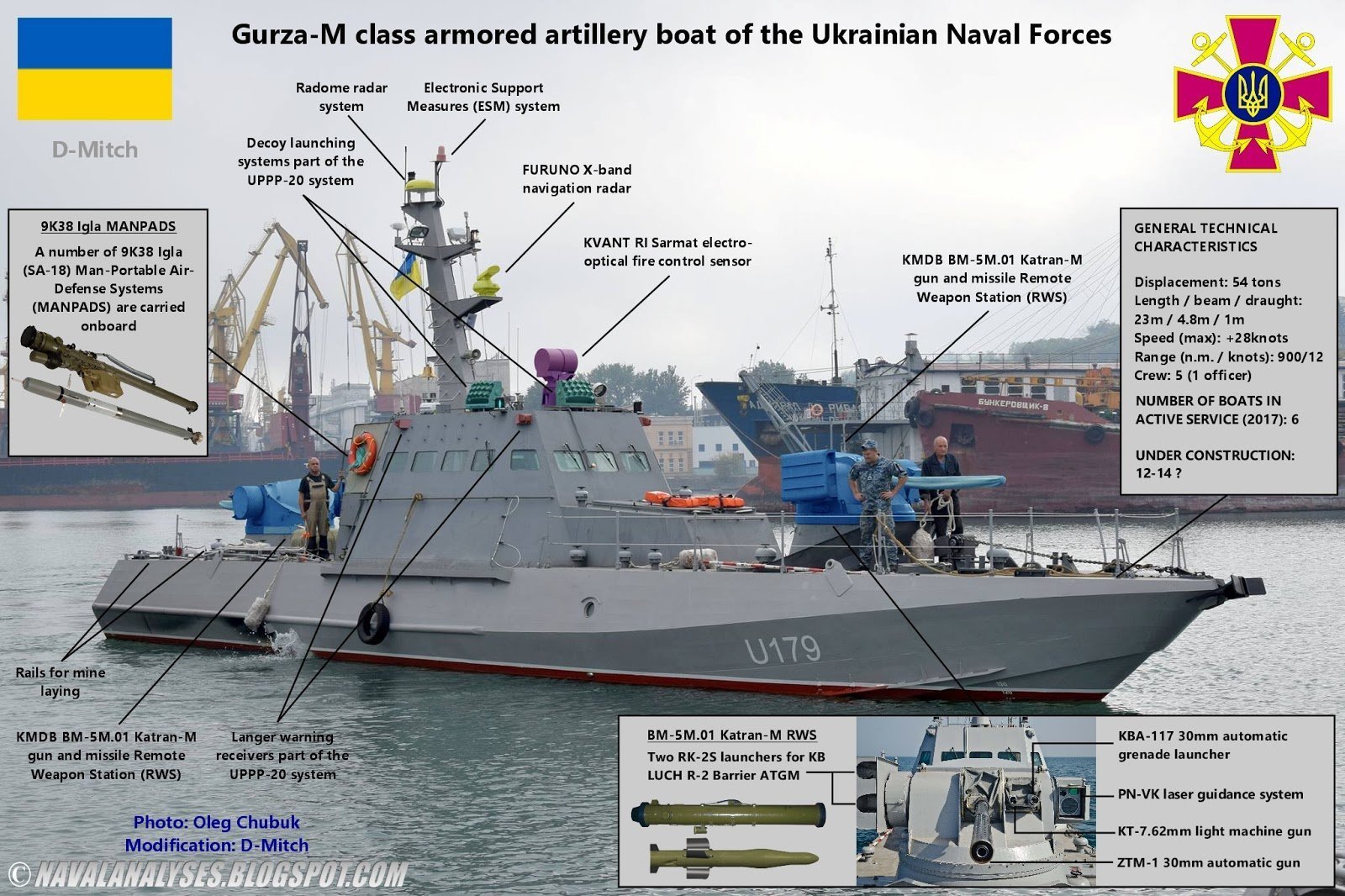

The general characteristics of the Gurza-M class are 23m length, about 54 tons displacement at full load, a maximum speed of 28 knots and a range of 900n.m. with the speed of 12 knots. Its crew is 5 men of which one of them is officer. The draught is only 1 meter thus the boat can easily go anywhere close to shore and of course to shallower depths of river sailing. Their small size makes them also harder to detect via radar. These boats are capable of policing rivers, harbors, lakes and in general littoral areas up to 20 nautical miles off shore as well as the protection against smuggling, engagement of point coastal targets (tanks, bunkers, infantry etc.) and the provision of reconnaissance and tactical raiding support. The boats are built with the use of bullet-resistant steel materials (8mm thick armor). Till the end of 2017, Ukraine will have in active service six (6) of those artillery boats while about 12-14 are under construction. The Ukrainian Navy is set to take delivery of about 20 boats by 2020 which will form the backbone of the Ukrainian Navy.

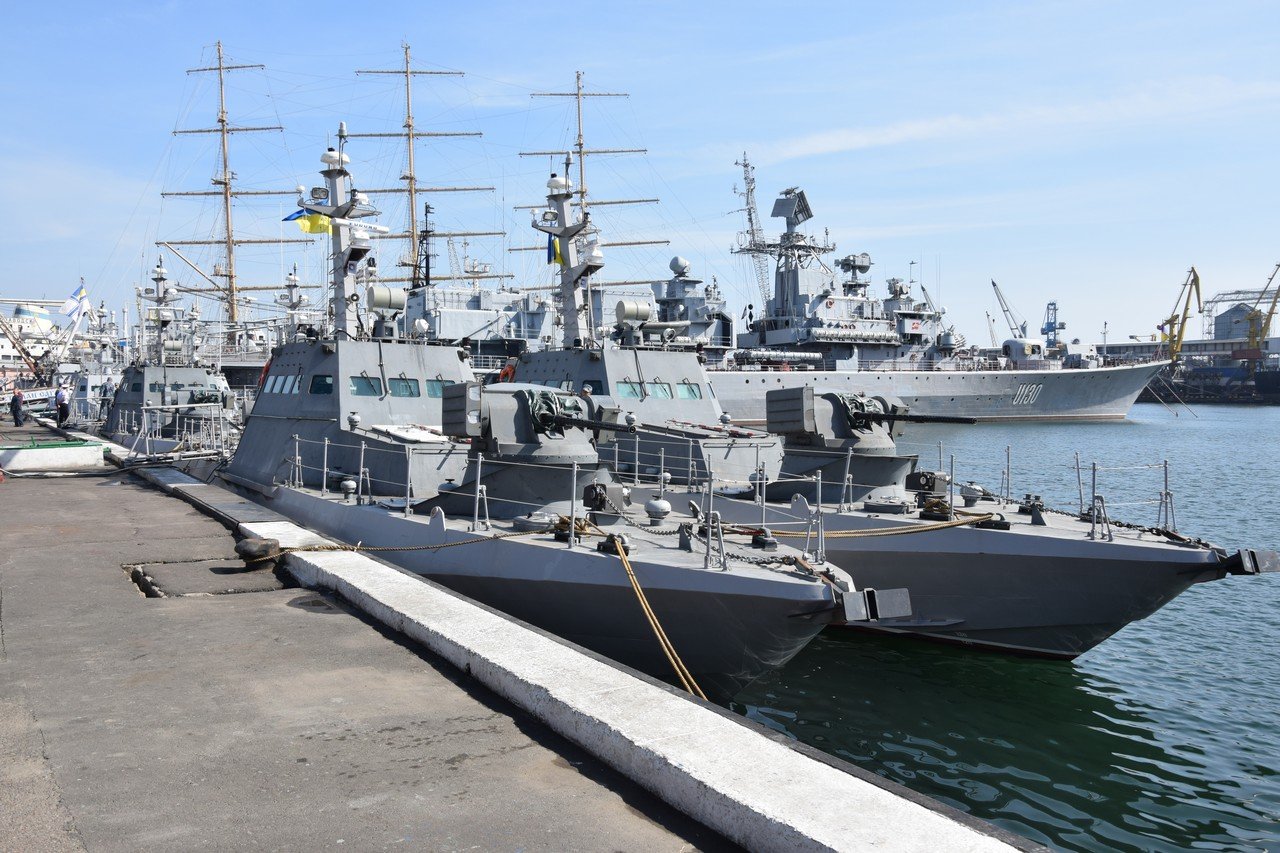

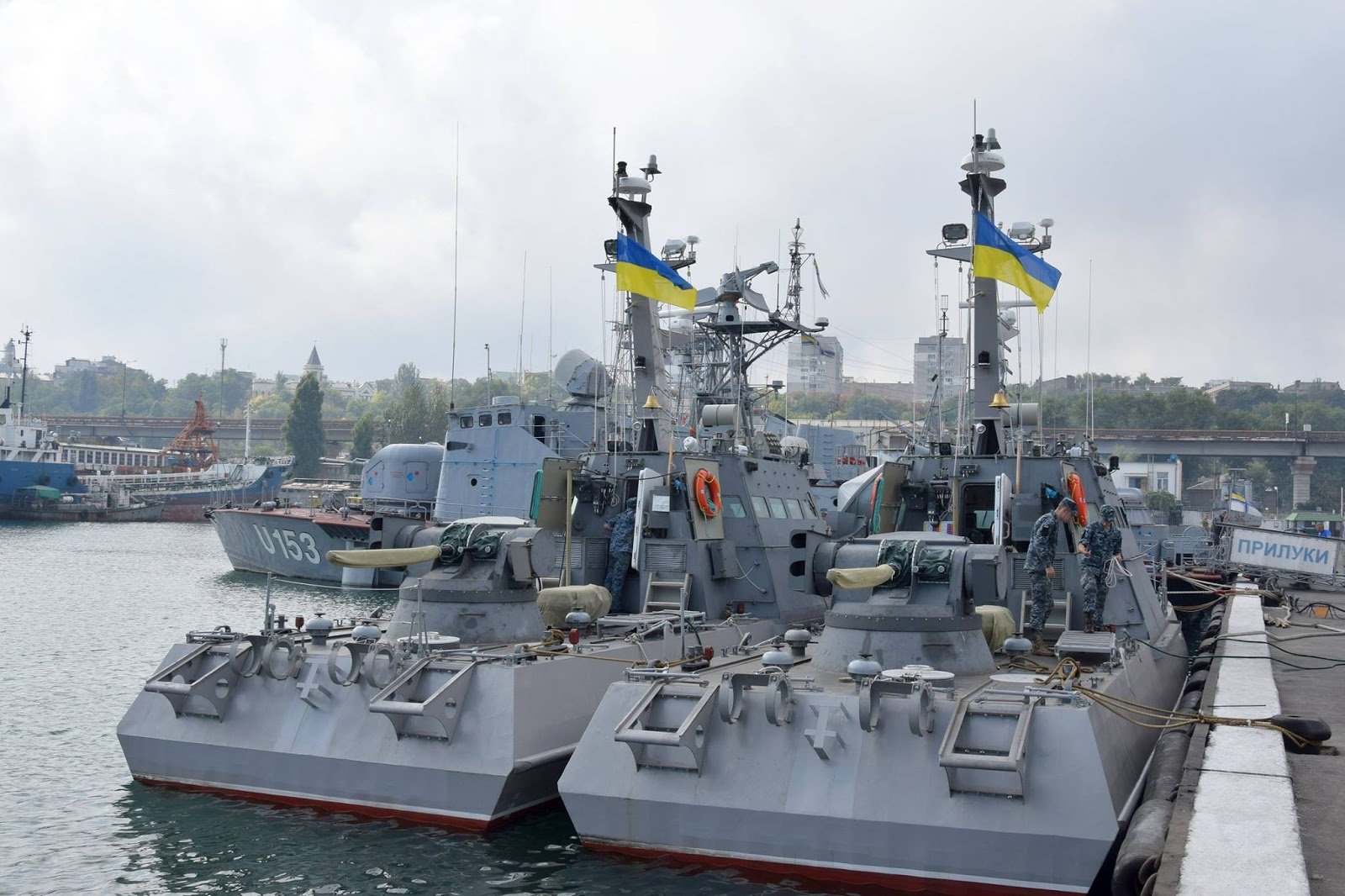

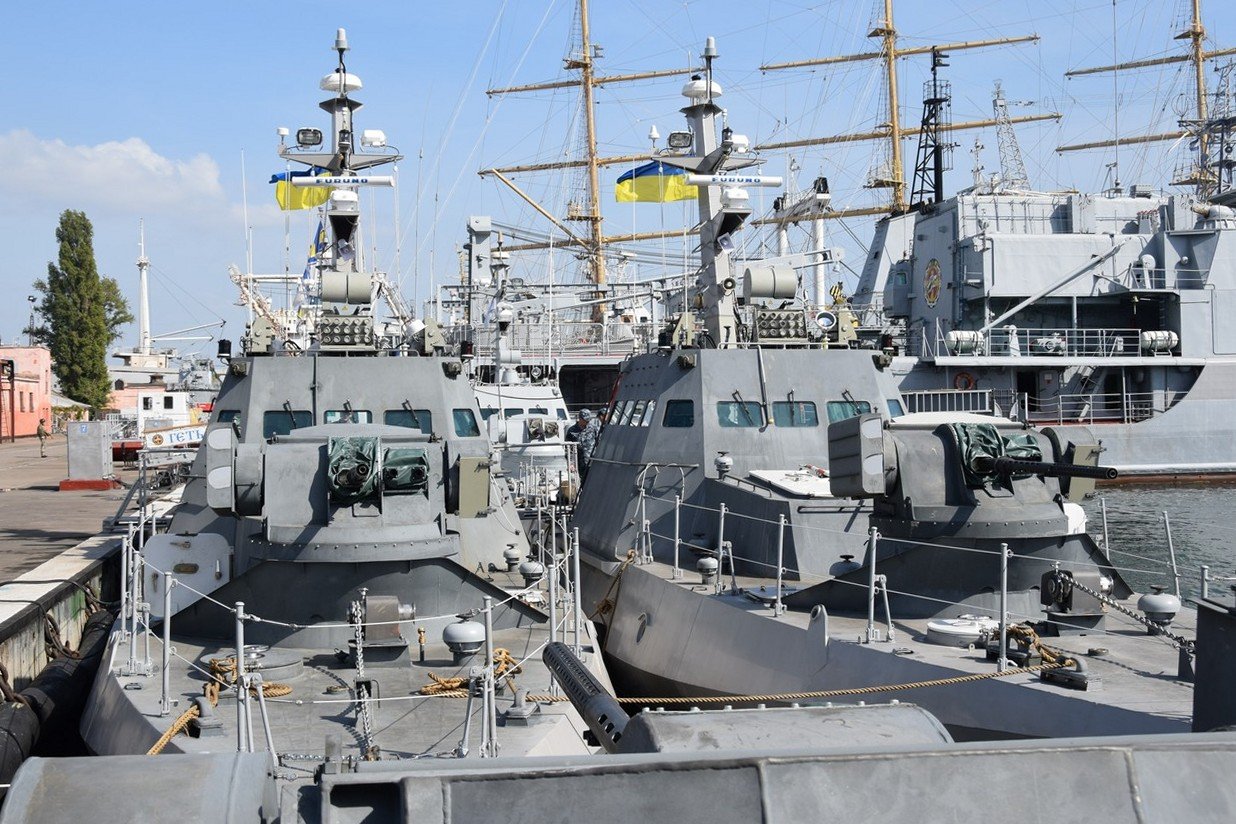

All the six Gurza-M class armored artillery boats of the Ukrainian Naval Forces
The modernized Desert Vipers of the Ukrainian Naval Forces!
The main armament of the boat is two remotely operated BM-5M.01 Katran-M turrets, located forward and aft the bridge, that are equipped with an impressive variety of weapons including a gun, a heavy machine gun, a grenade launcher and two launchers for anti-tank guided missile (ATGM)!
Modified photo of a Gurza-M class armored artillery boat. For a high resolution image click here.

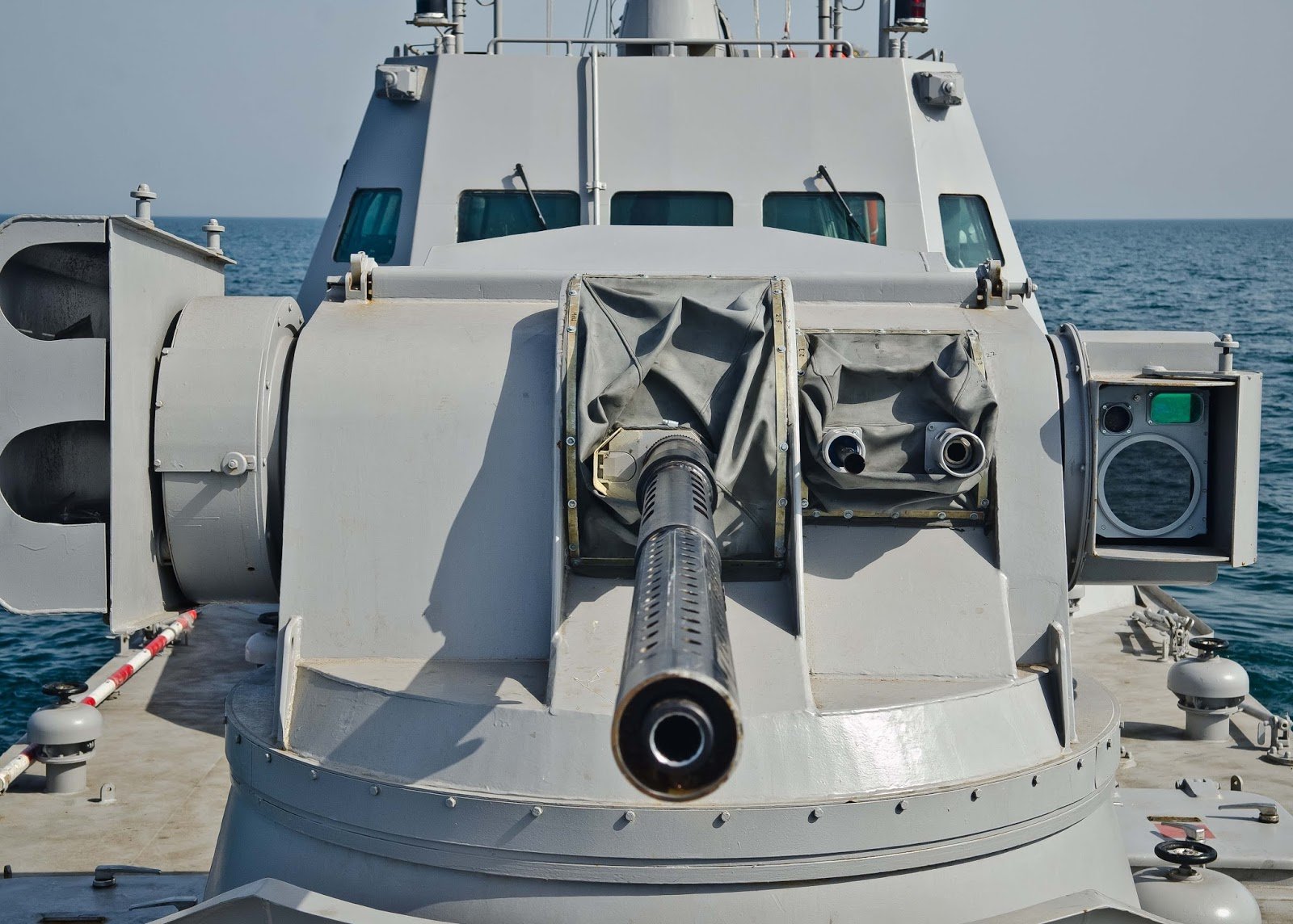

The forward Katran-M RWS
View of the Katran-M RWS
This turret is built by Mykolayiv Mechanical Repair Plant. It is the naval counterpart of the fighting module BM-3 Shturm weapons stations developed for infantry fighting armored vehicles. Each Katran-M module is fitted with a ZTM1 30-mm automatic cannon, a coaxial KBA-117 30-mm automatic grenade launcher, a coaxial KT 7.62mm light machine gun and the most important with two Barrier anti-tank guided missiles (ATGM) with a laser guidance system. The KAU-30M combat module is intended for the destruction of ships (boats), as well as mobile and fixed armored targets, light armored objects, live power, coastal fire fortified points and helicopters located on the shore.

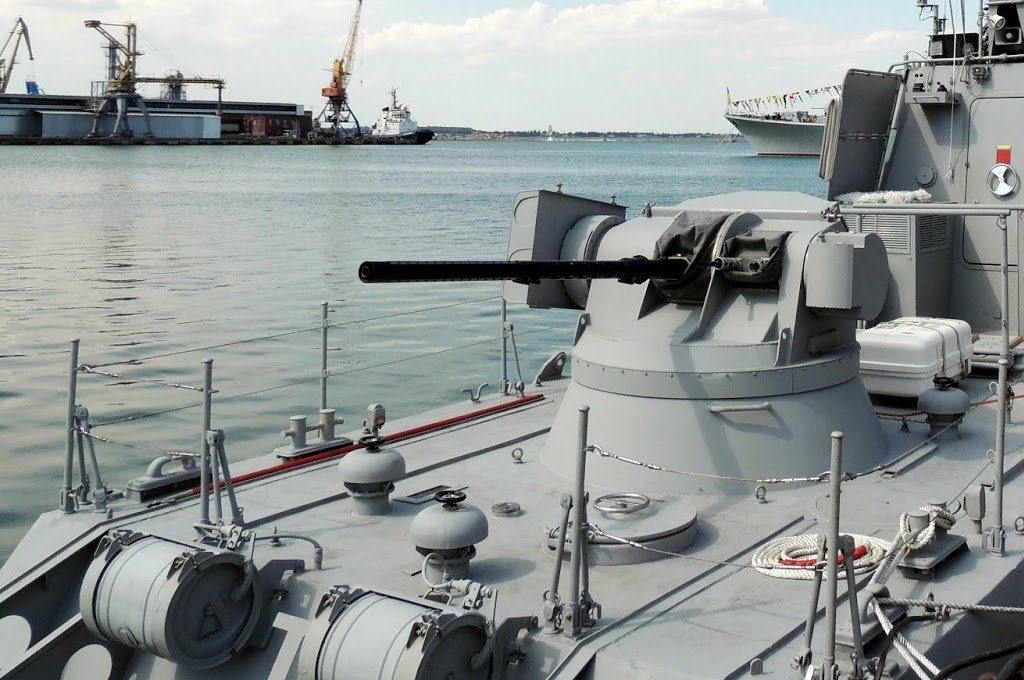

The forward Katran-M weapons station. Photo: Oleg Chubuk
The ZTM-series automatic cannons are designed to engage light armored infantry fighting vehicles, dismounted infantry and low-flying aircraft. The cannons deliver high-explosive or armor piercing rounds loaded from belt magazines stored in two ammunition boxes. Each of the automatic cannons is provided with up to 2×400 rounds of ready use ammunition of various types. According to the manufacturer, effective range of the ZTM1 30-mm automatic cannon when engaging ground targets such as light armoured vehicles is 1,500m with Armor Piercing (AP) shells while soft-skinned targets can be engaged out to 4,000 meters with High Explosive Tracer (HET) and High Explosive Incendiary (HEI) shells. Air targets can be engaged flying at low altitudes of up to 2,000 m at subsonic speeds and up to a slant range of 2,500 m. The rate of fire is 330 rounds per minute.

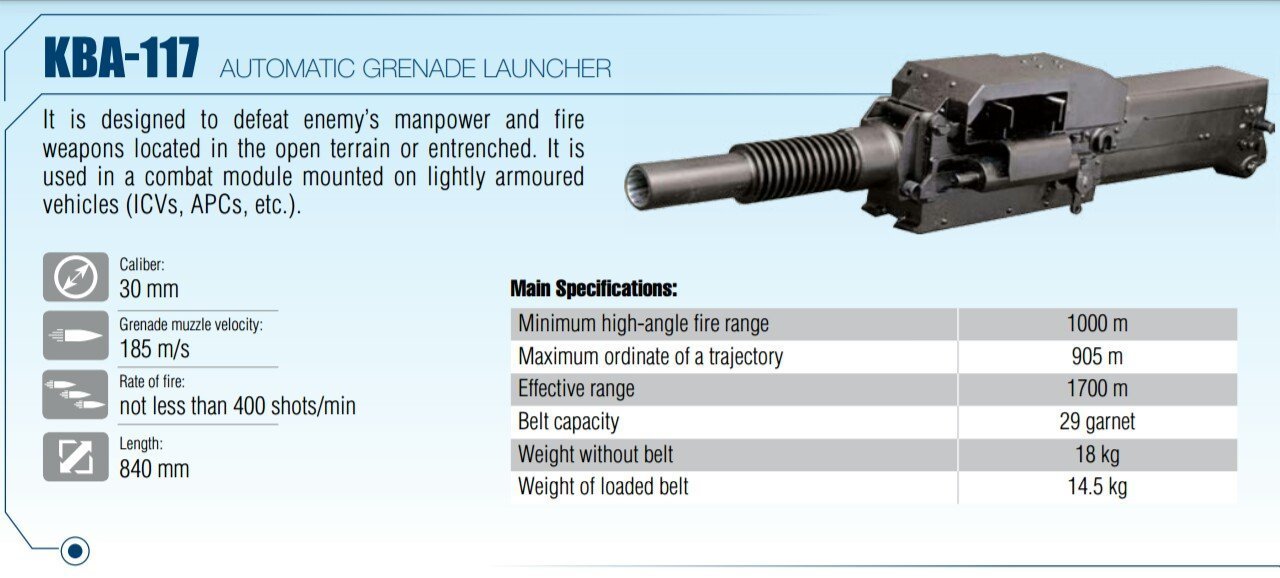

The characteristics of the KBA-117 grenade launcher. Image: ukroboronprom.com.ua

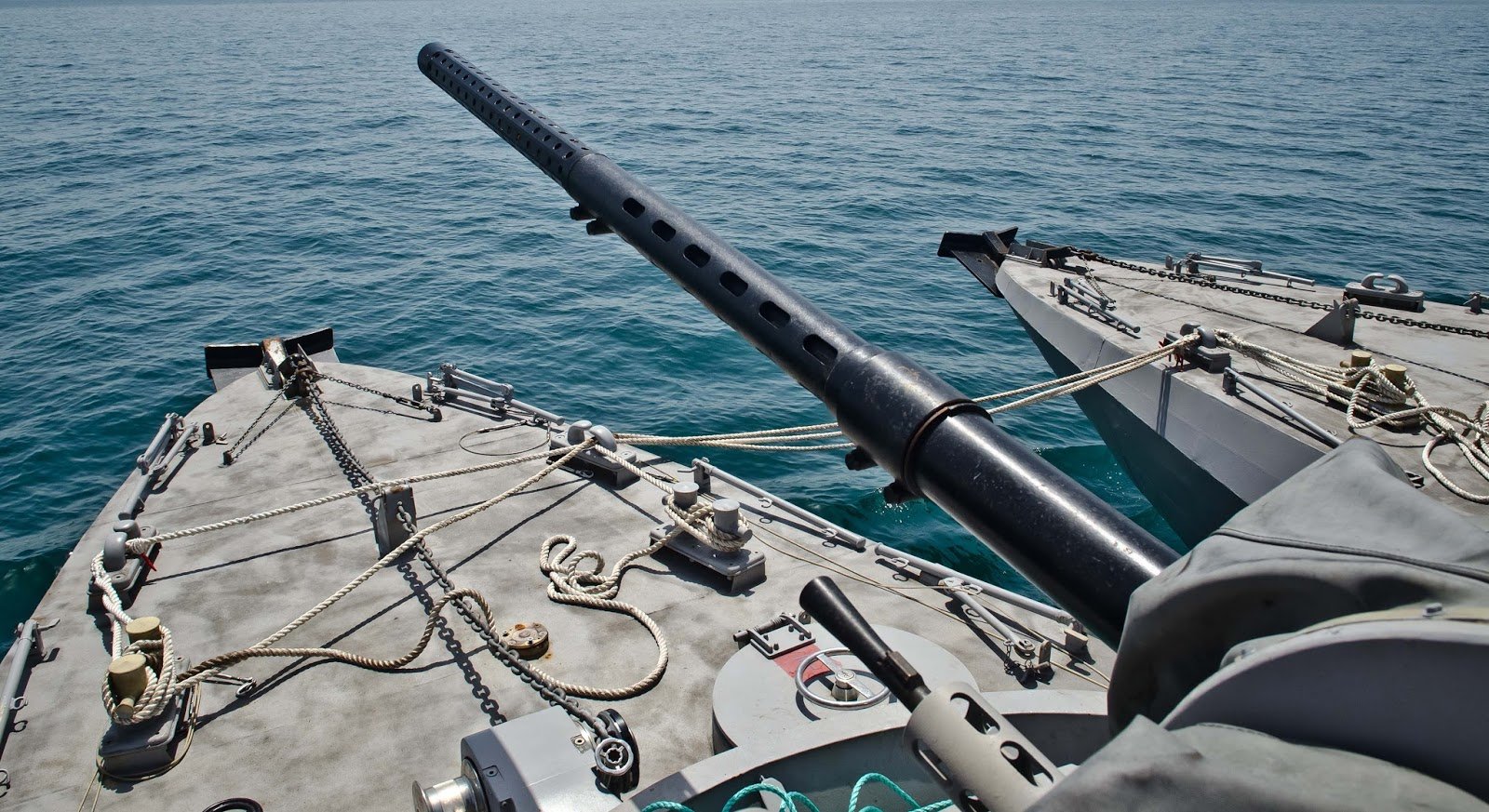

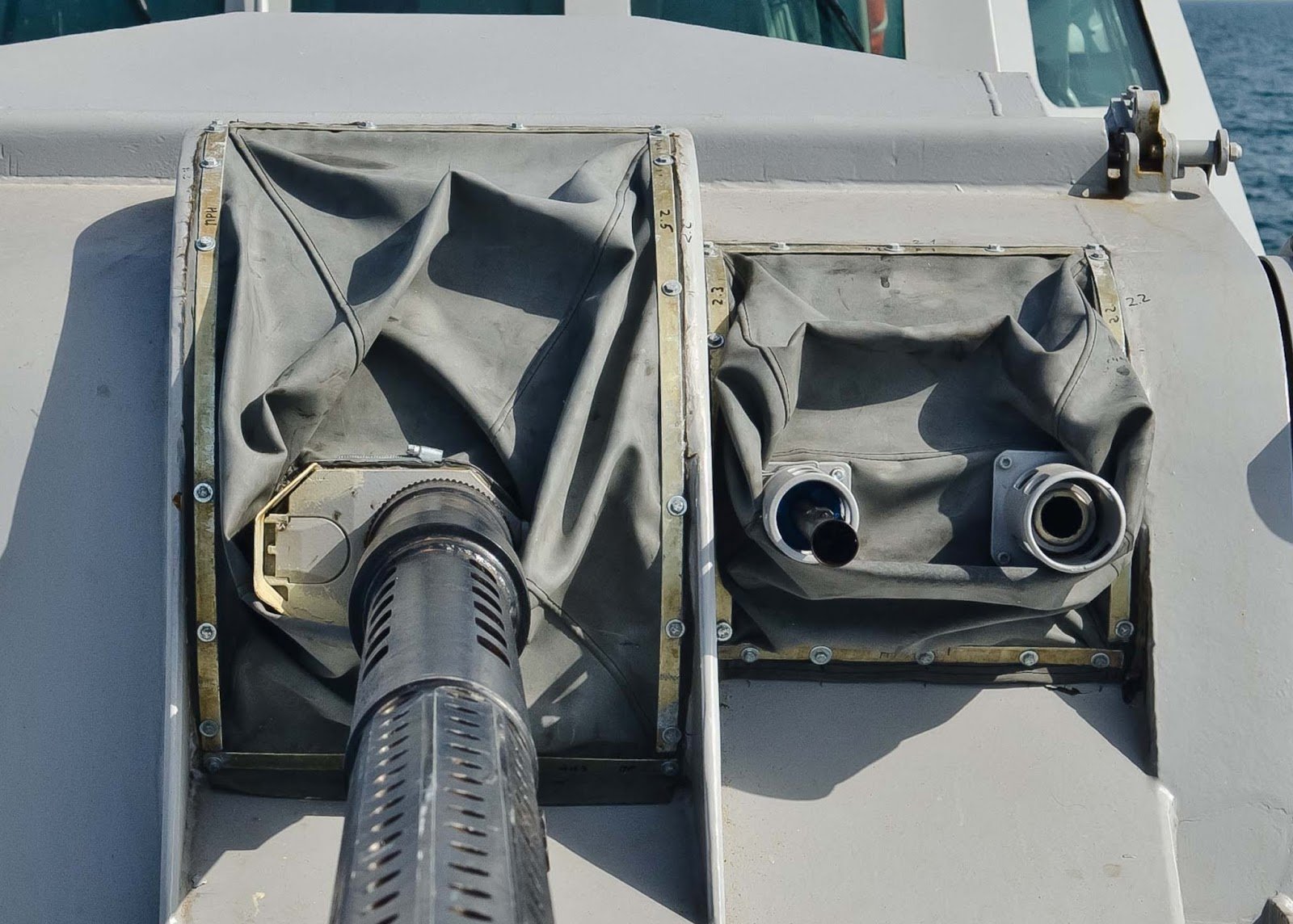

From left to right: 30mm gun, machine gun and 30mm grenade launcher
Machine gun to the left and 30mm grenade launcher to the right
The KBA-117 30-mm automatic grenade launcher is set to provide medium range fire support against enemy personnel and unarmored targets and is fed by a 29-round metal belt (three are carried on board). The rate of fire is up to 420rds/min and the maximum effective range is 1,700m. The KT-7,62 (PKT) 7.62mm machine gun has a maximum rate of fire 700-800 rpm, an effective range of about 2km. The ready use ammunition is 2,000 rounds.

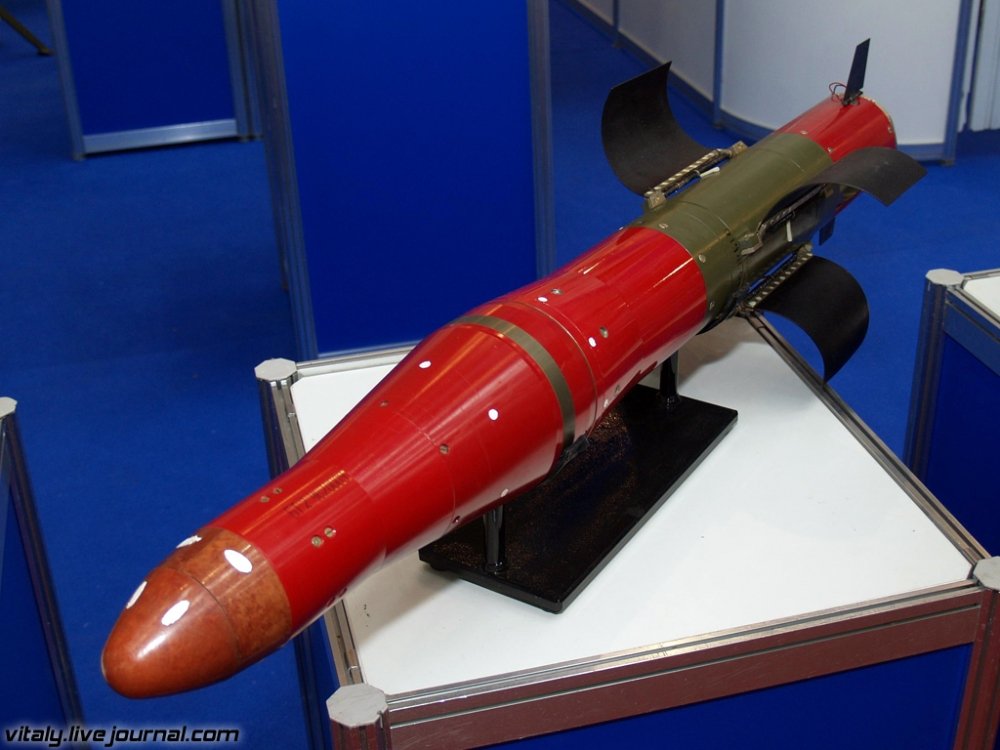

The deadly Barrier ATGM. Photo: vitaly.livejournal.com
Barrier launchers and missile. Image via www.army-guide.com

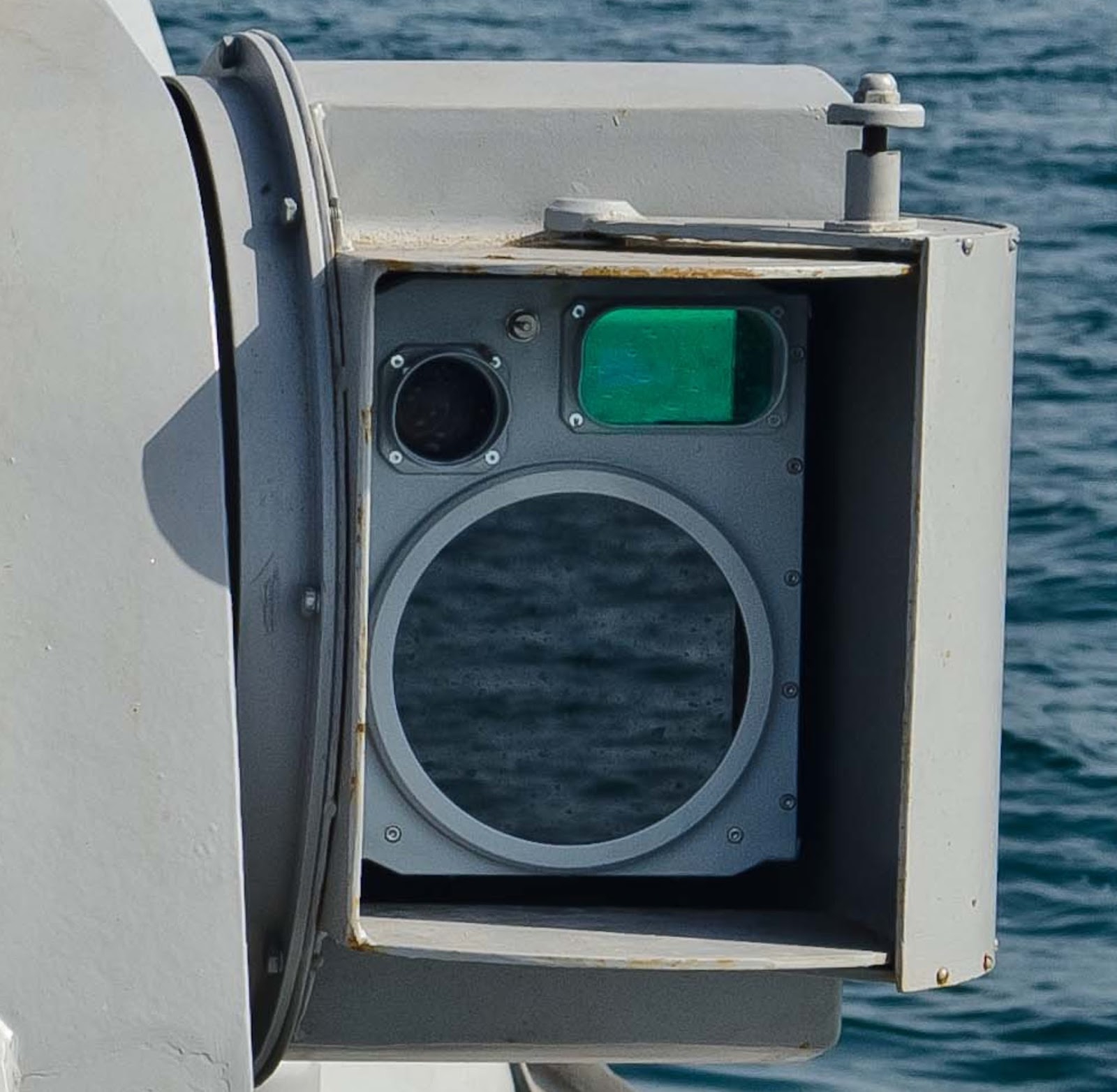

The Katran-M’s laser guidance system.
The most important weapon aboard the vessels is the Barrier anti-tank guided missile (ATGM) of which two are ready to fire on each of the Katran turrets. With this weapon the boat can fight against stationary and moving armoured objects (vehicles, craft, small fortifications, etc.), helicopters and modern armoured combat vehicles, fitted with explosive reactive armour (ERA). Equipped with a tandem hollow-charge warhead, the ATGM can engage targets at a distance between 100m to 5,000m via Semi-Automatic Laser (SAL) guidance by the PN-VK (or else Triad?) missile guidance system that equips each Katran turret, after being designated and lock-on, to be tracked automatically (all-weather capability) without further operator’s intervention.The system includes two TV cameras, a thermal imaging camera and a laser-ranger finder. The detection range of the missile guidance system is 10km for a vehicle while the effective range is 4 km or more with the use of fragmentation shells, 2km when using armor-piercing shells and 2.5km for air targets.

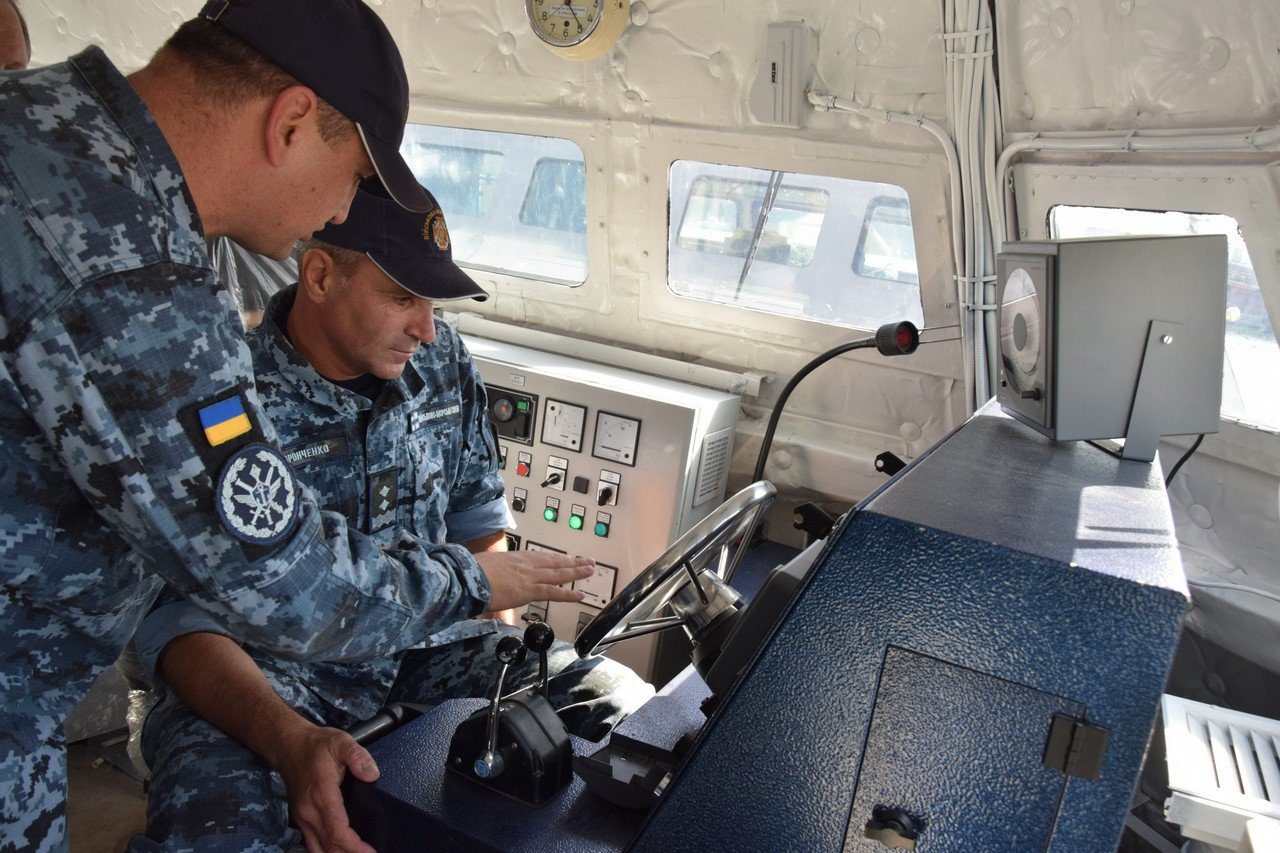

Interior of the bridge. Photo: news.liga.net

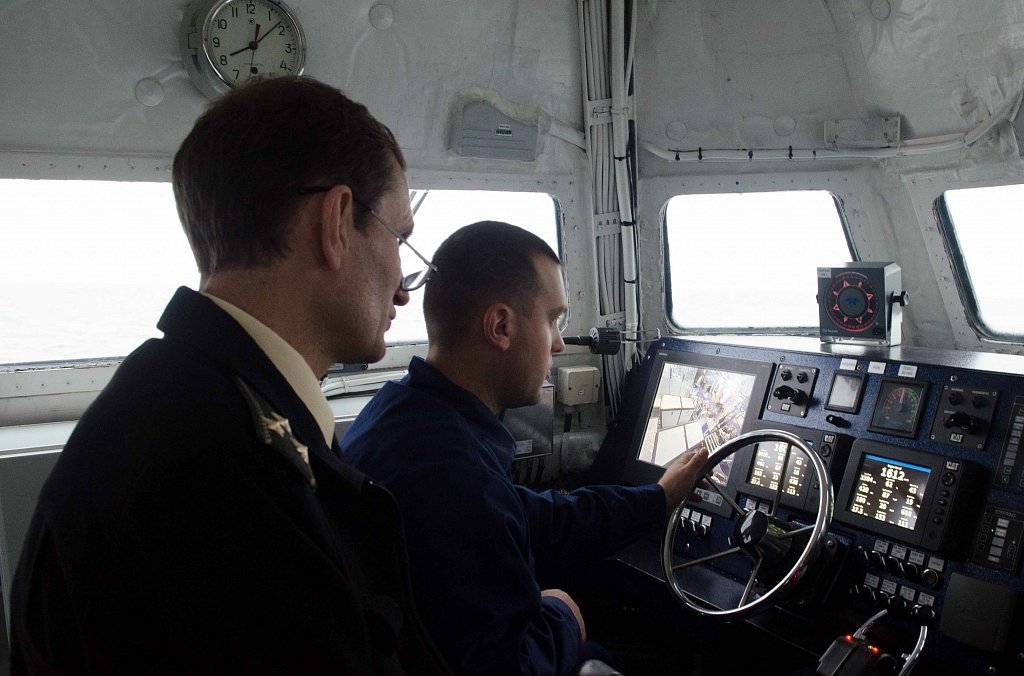

The interior of the bridge and CMS of the boats.

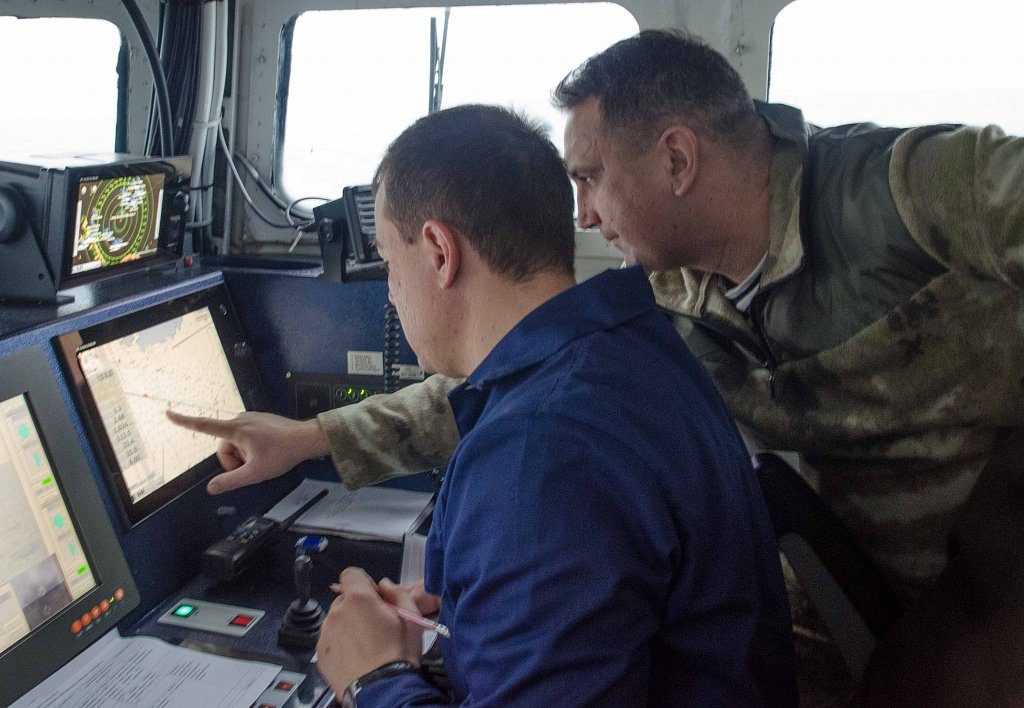

Interior of the bridge. Photo: news.liga.net
The missile’s caliber is 130 mm and the wight of projectile is 16kg. The missile defeats armored infantry fighting vehicle (AIFV) protection systems of all kinds – be it a composite armor, active protection system, spaced armor or explosive reactive armor (ERA), and is capable of penetrating 800mm of Rolled Homogenous Armor (RHA) behind ERA.
UPPP-20 decoys. Photo via www.ukrmilitary.com

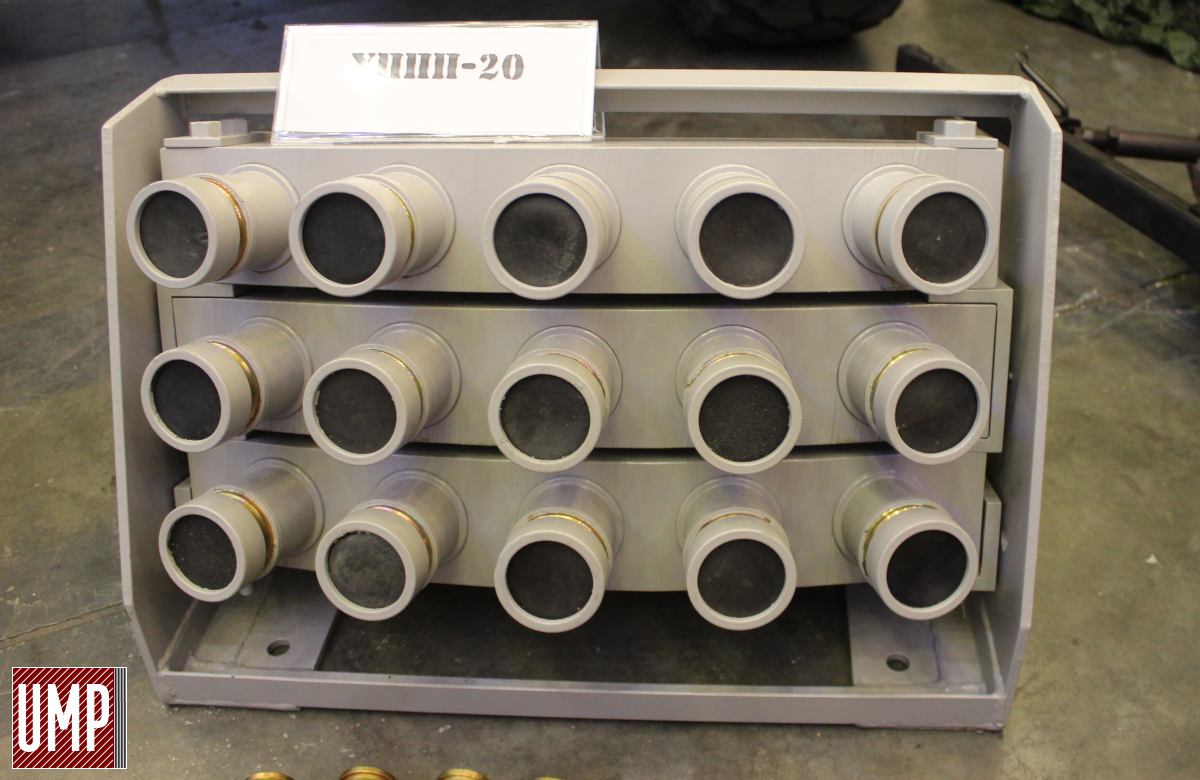

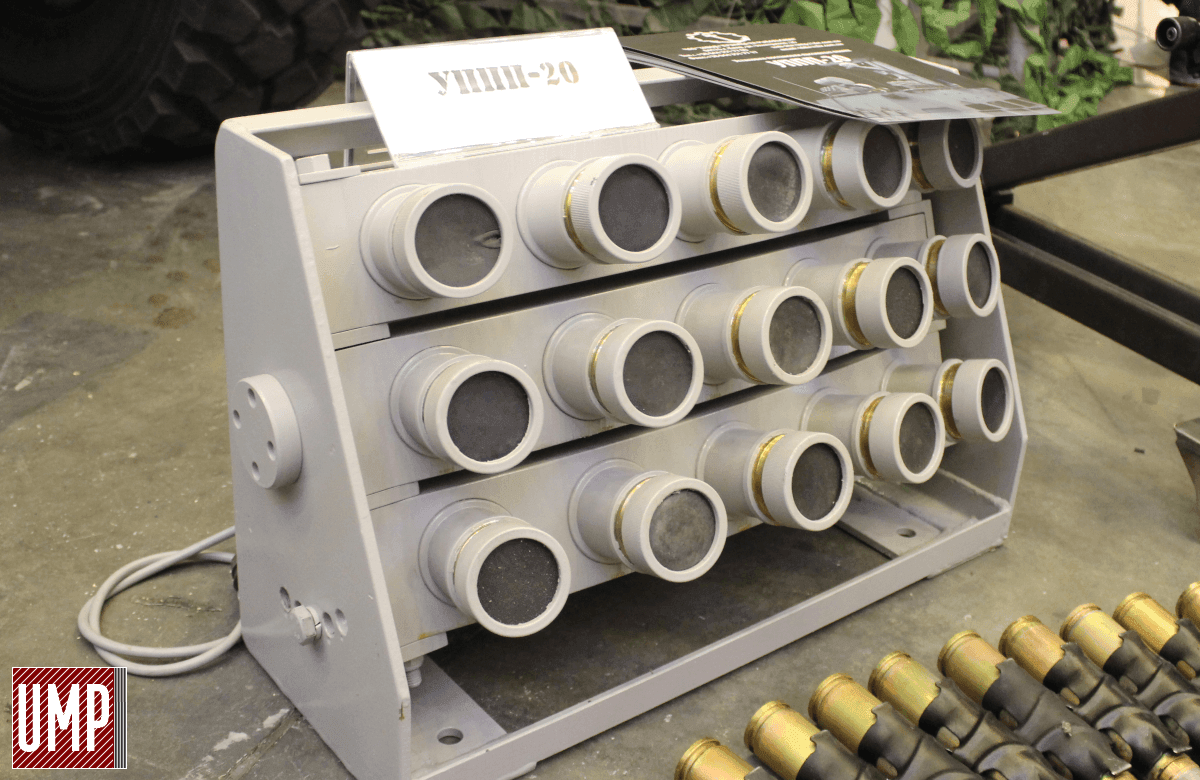

UPPP-20 decoy launching system. Photo via www.ukrmilitary.com
UPPP-20 decoy launching system. Photo via www.ukrmilitary.com

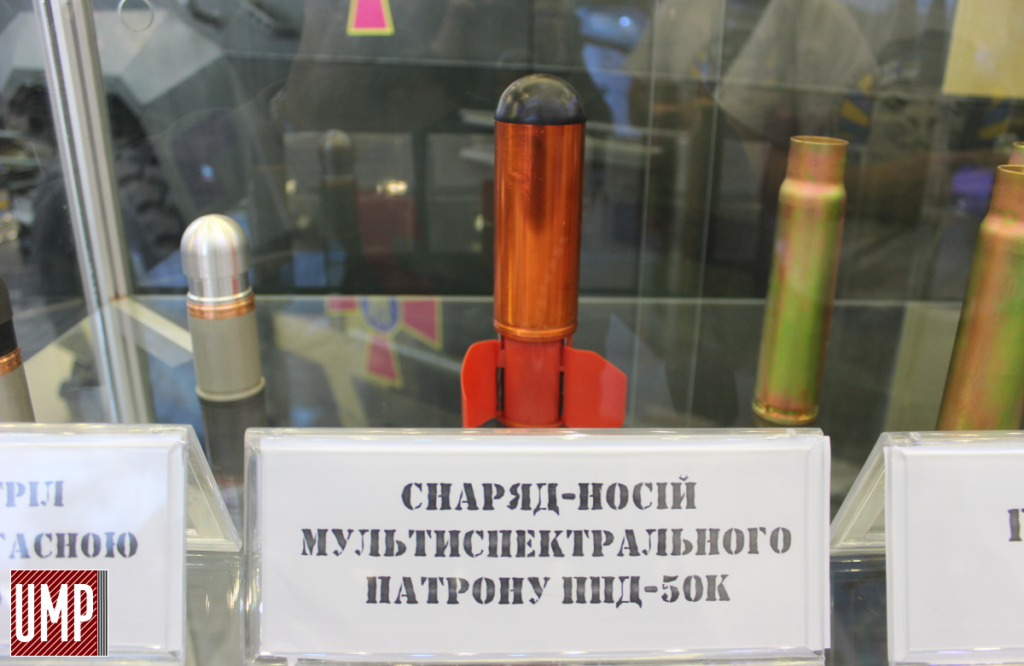

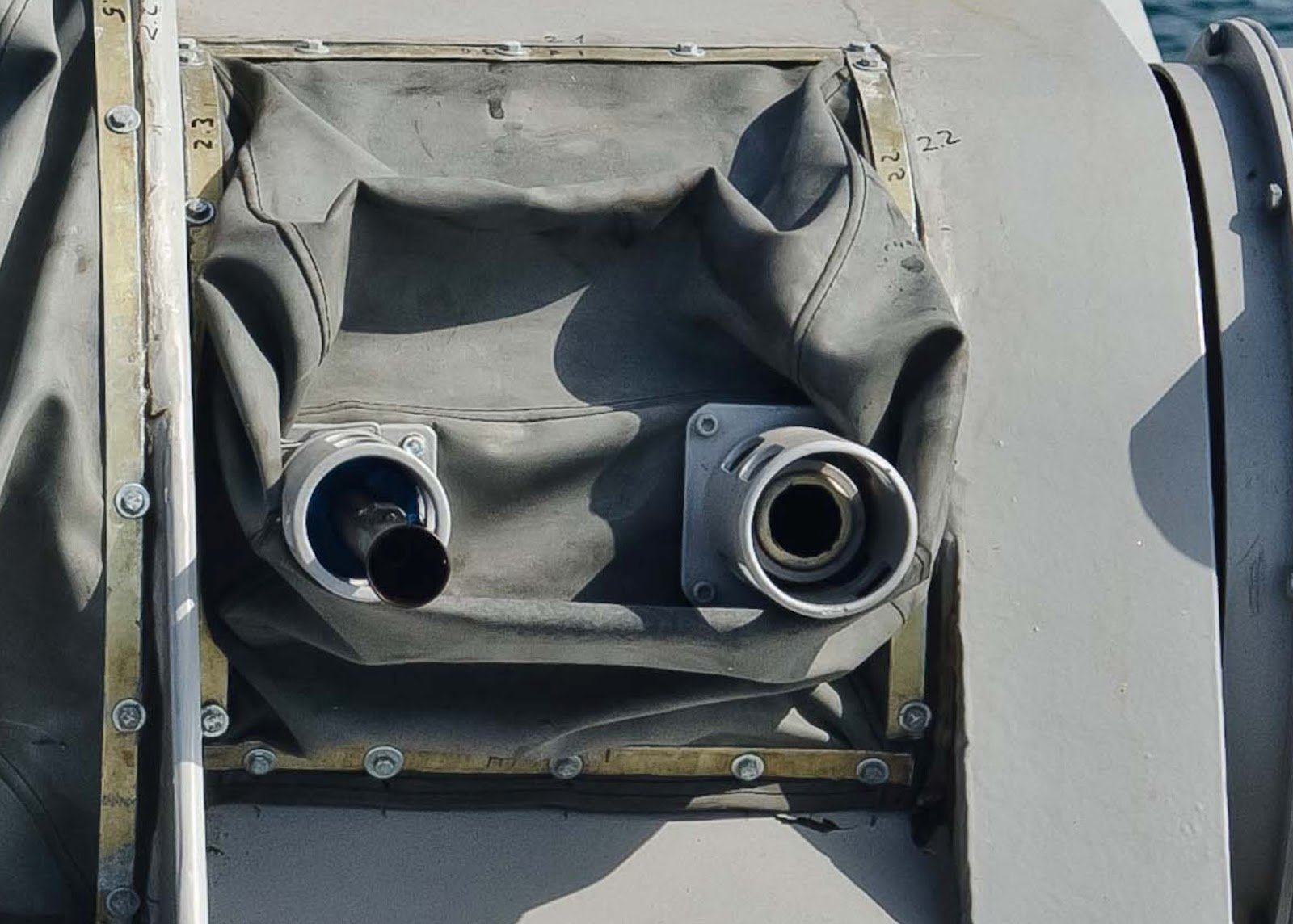

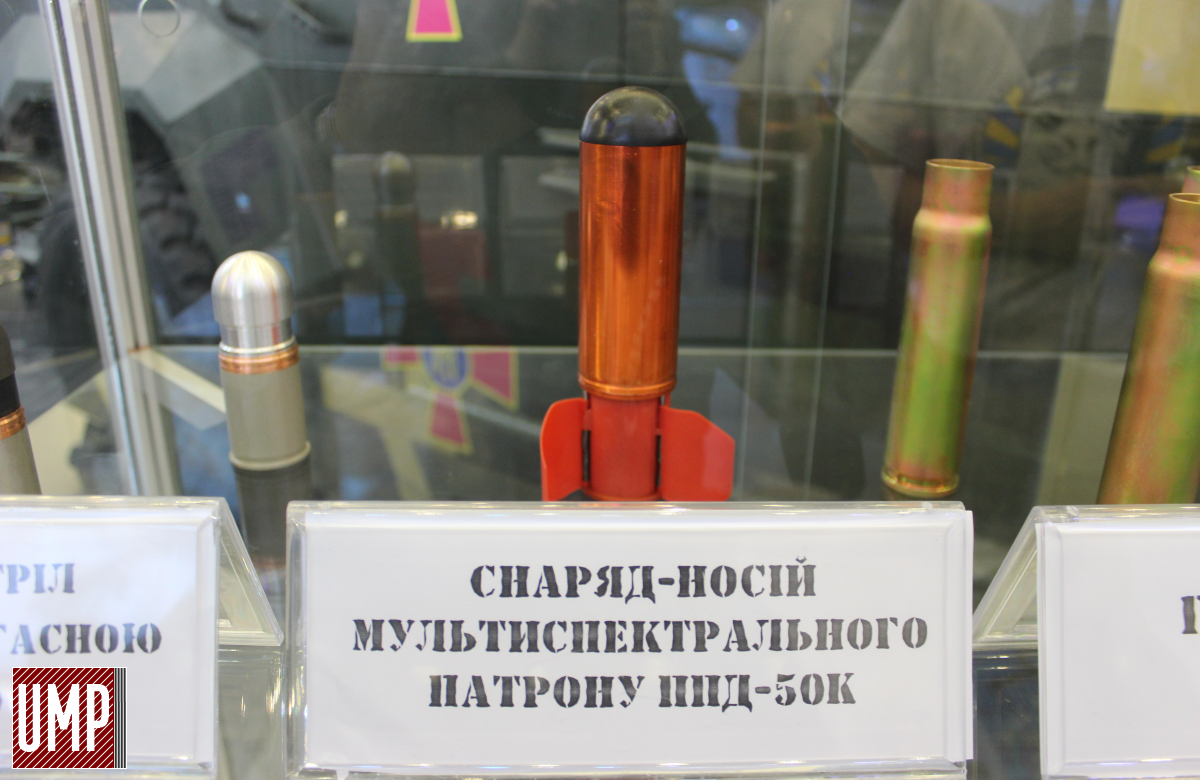

The boats are equipped with the UPPP-20 protection system that consists of four laser warning receivers and three decoy launching systems. Each automatic decoy system consists of a 15 50 mm decoy launchers designed to protect the vessel from unexpected attacks. The system works after the signal is received from the laser warning receivers, while the system recognizes the threat and launches the decoys with multispectral smoke projectiles in the direction of the threat movement.
Boat from 1st batch. Via fleetphoto.ru

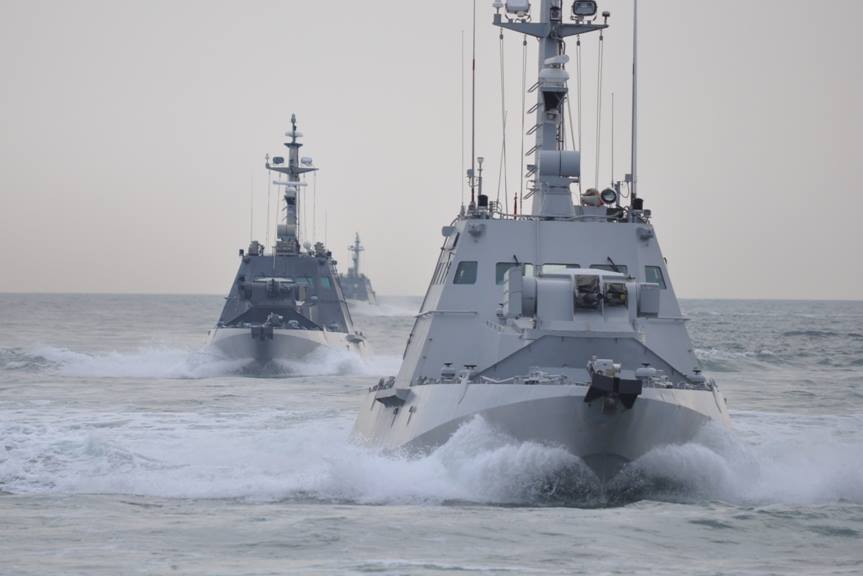

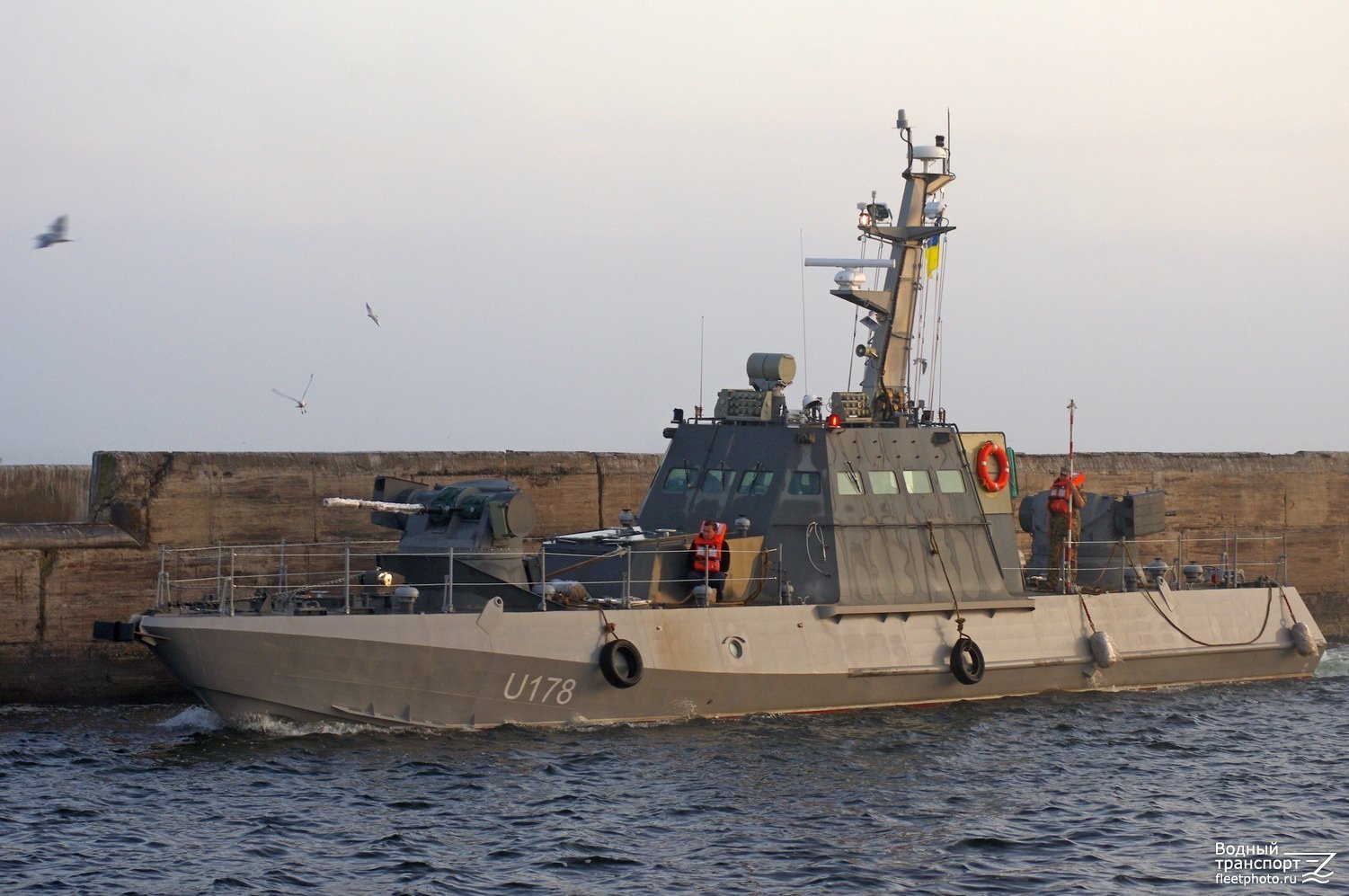

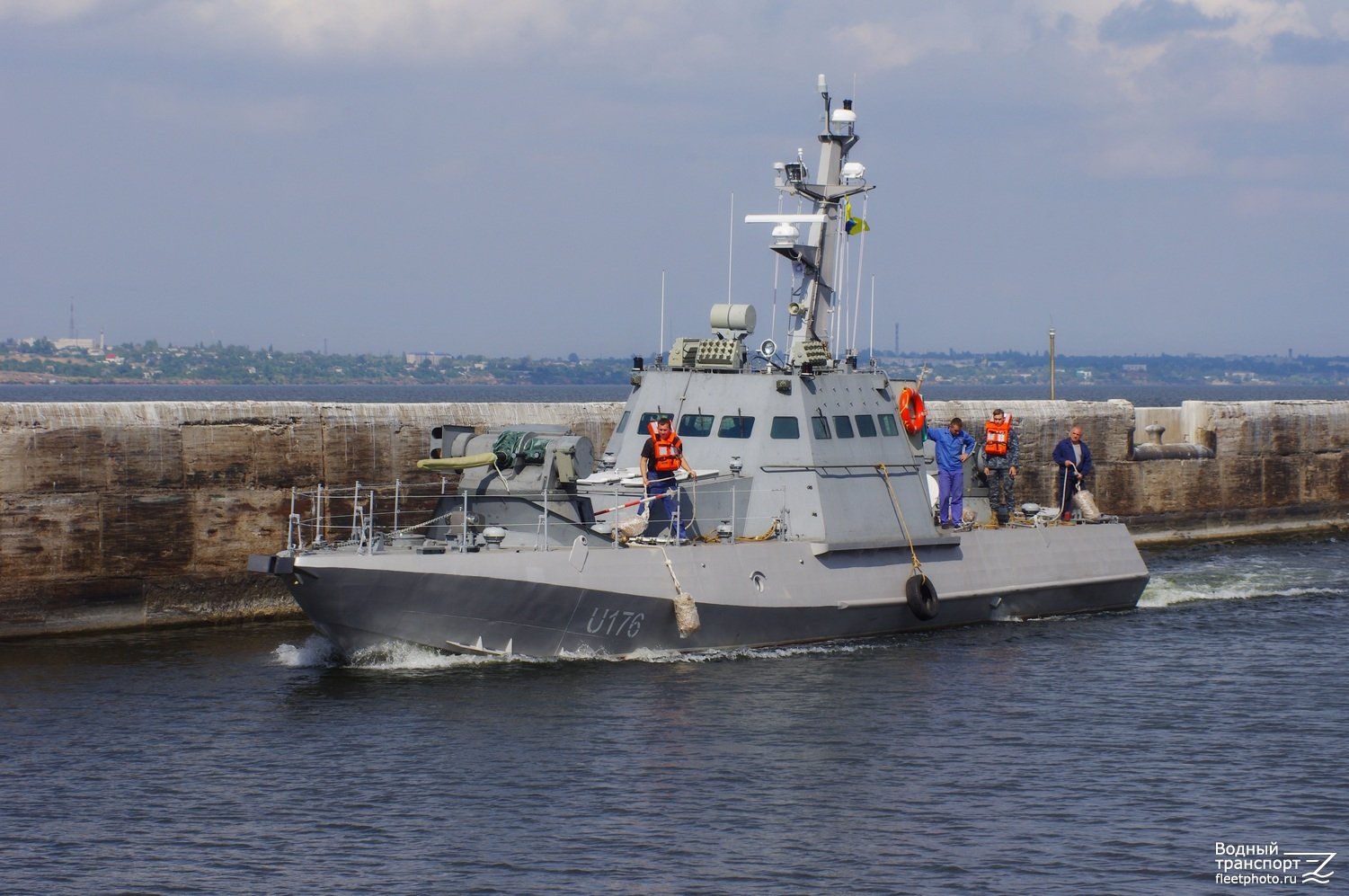

Boat from 2nd batch. Via fleetphoto.ru

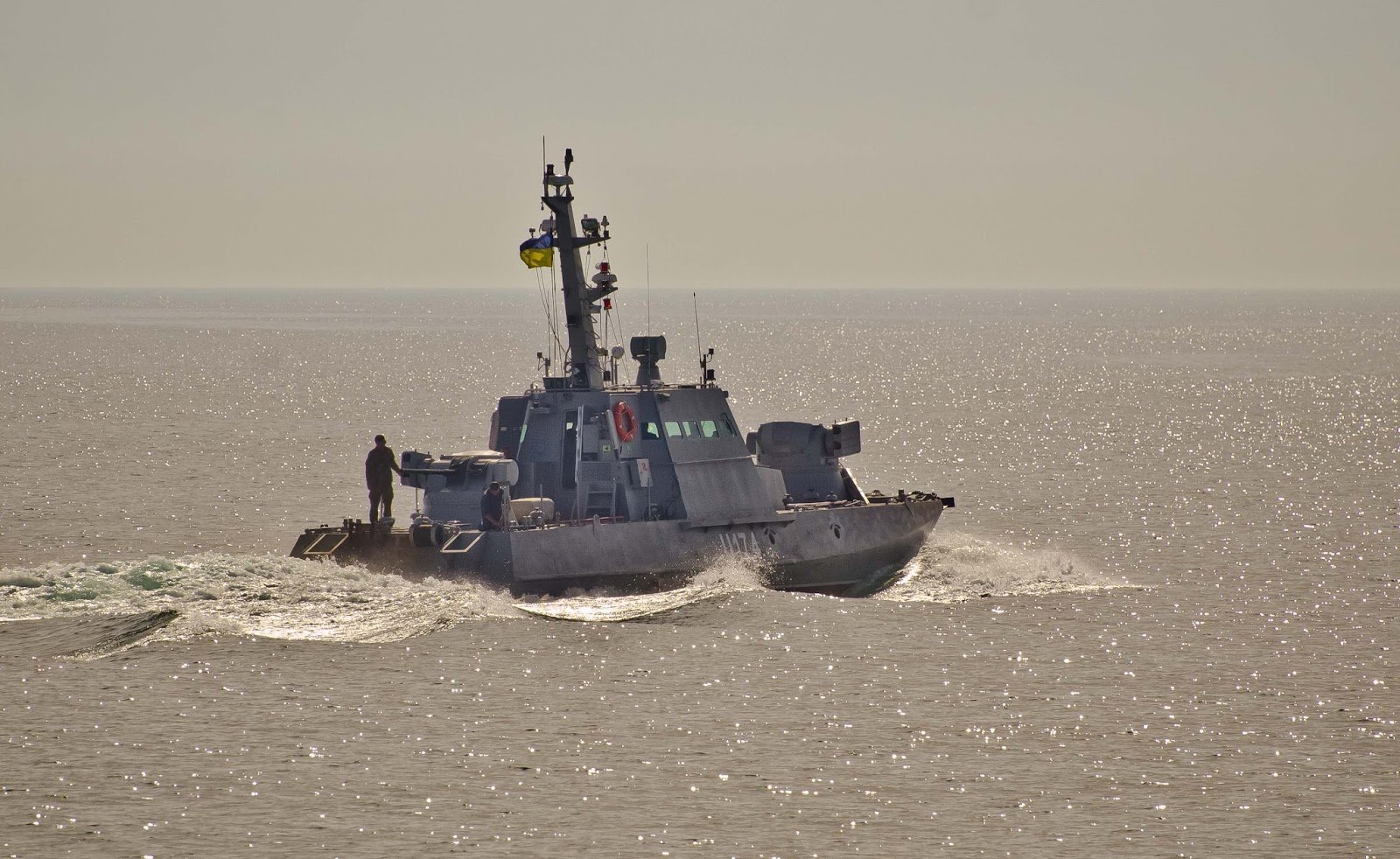

Stern view. Photo: Oleg Chubuk

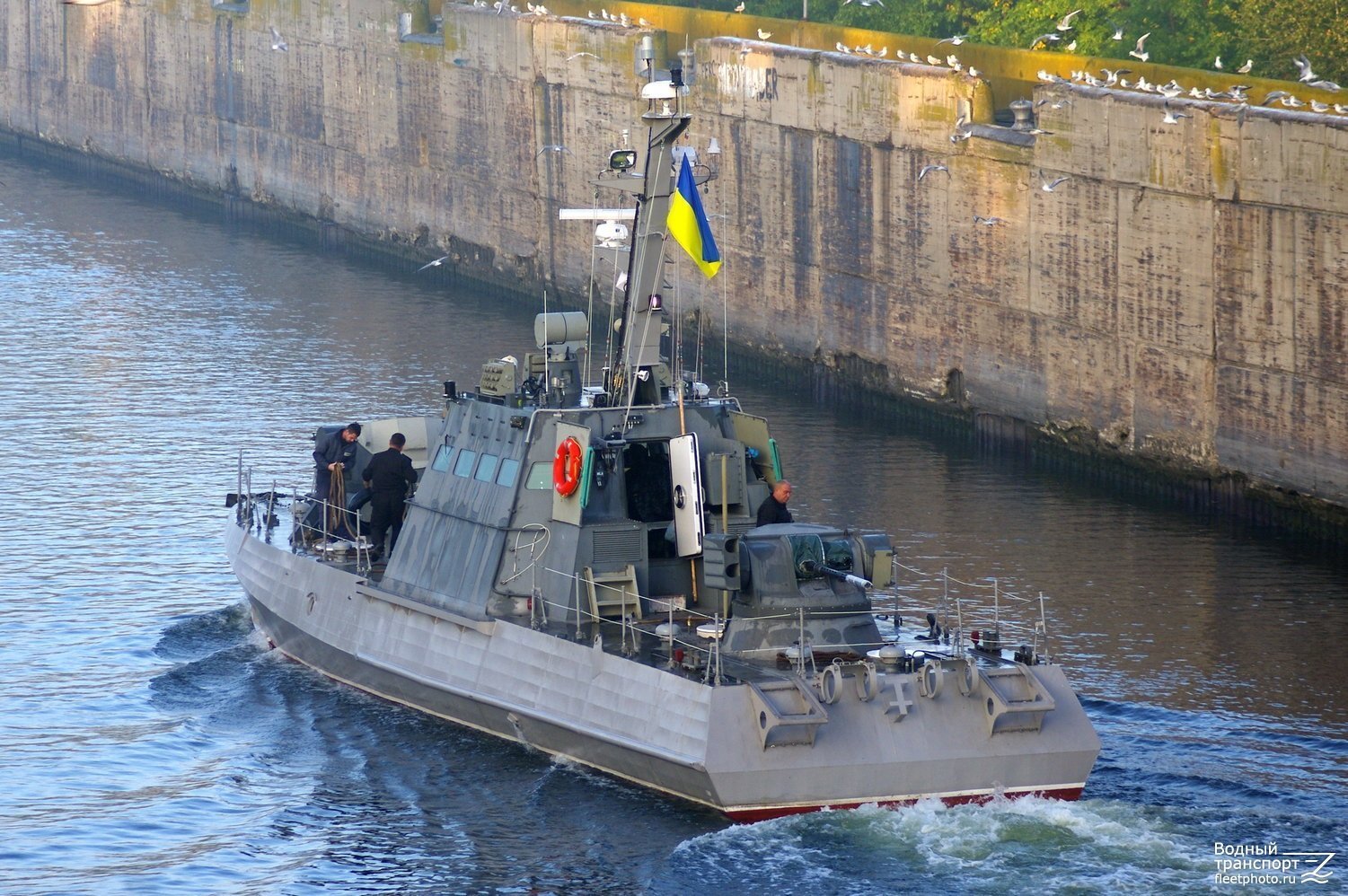

Stern view. Photo via fleetphoto.ru
The rack for laying mines. Photo: Oleg Chubuk
Except the two weapons turrets, the boats in the class carry a number of 9K38 Igla-variant (probably SA-18) Man-Portable Air-Defense Systems (MANPADS), in order to protect themselves from low flying aircraft. The warhead weights 1.17 kg with 390 g (14 oz) explosive and the operational range is up to 5km. The boats also have rails at the stern for minelaying and thus they have the capability to deploy a small number of explosive mines at certain areas in order to hamper enemy shipping movements, lock vessels into a harbor or to protect friendly vessels and create “safe” zones.

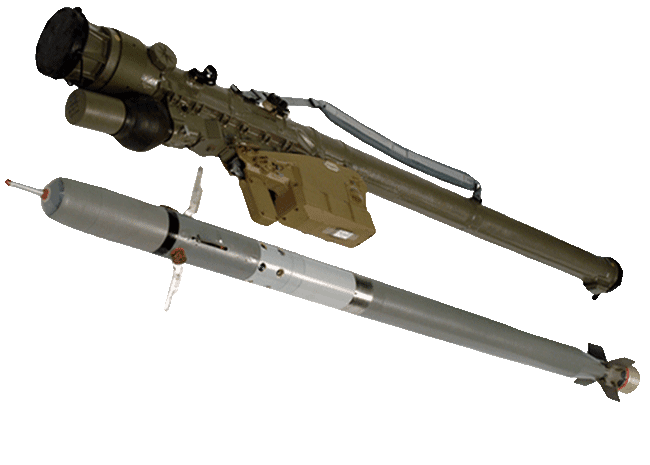

9K38 Igla MANPADS

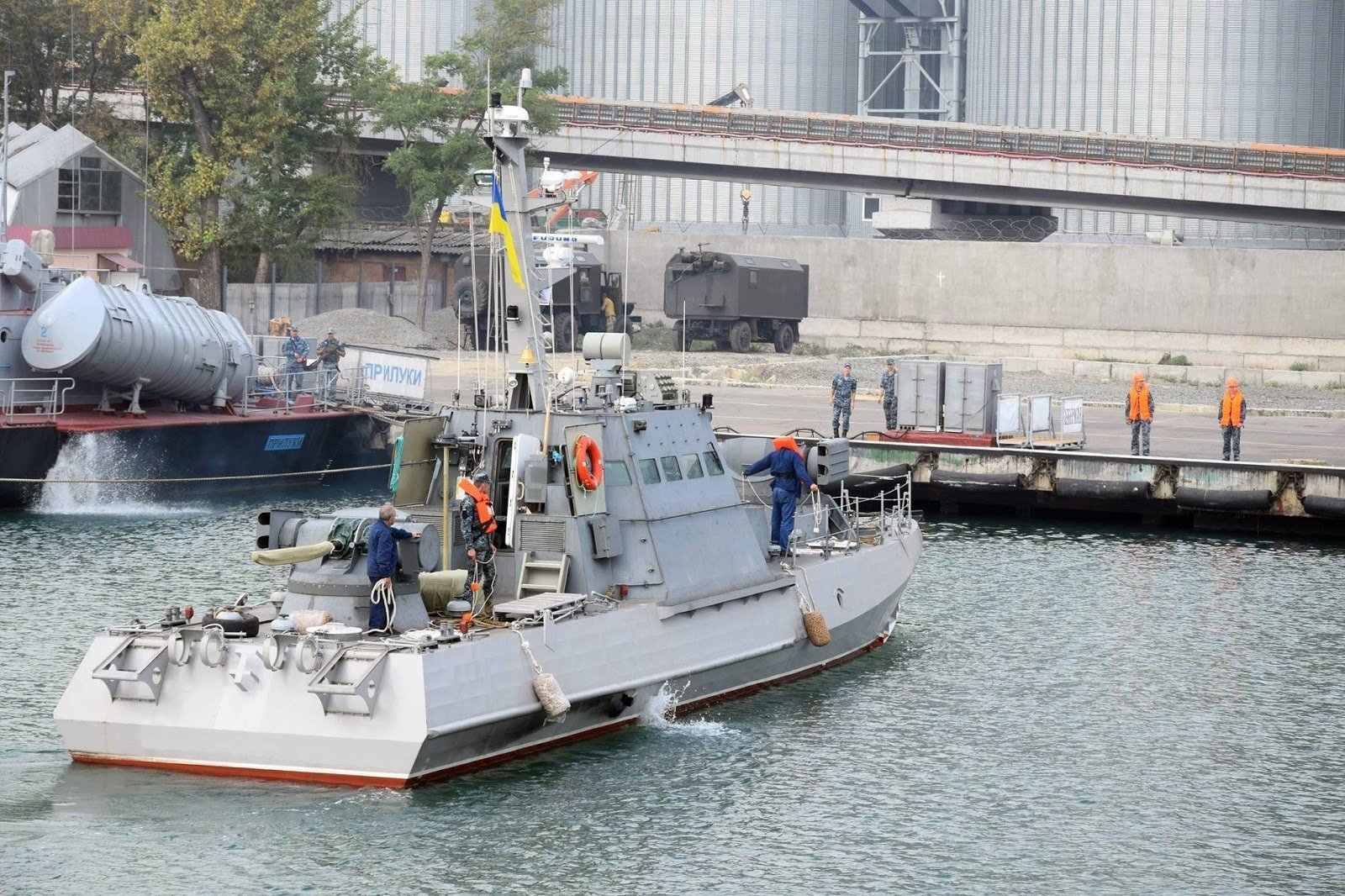

The stern of a Gurza-M class boat with the aft Katran-M weapons station, the mine rails and the gas barrels. Photo by Alexandr-RED

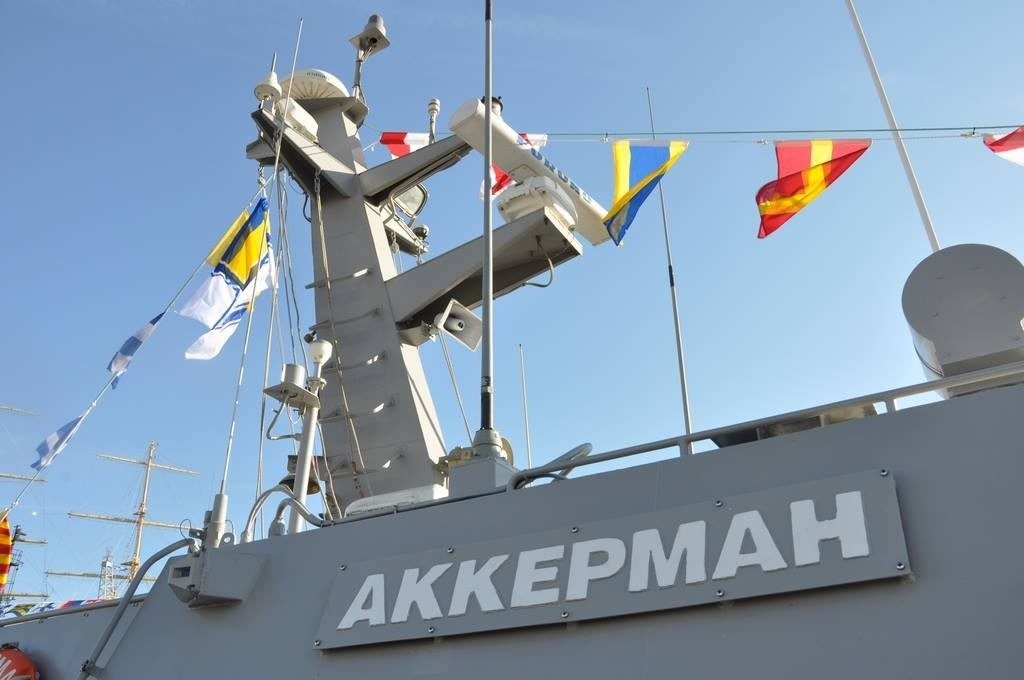

Each boat is equipped with a KVANT RI Sarmat electro-optical fire control sensor installed on the bridge’s roof. In addition to fire control system, each turret is equipped with its own laser guidance system / optronic director. The equipment completes one Furuno X-band navigation radar, one unspecified radome radar system atop of the mast as well as communication antennas and one omni directional receiving unit part of electronic support measures system (ESM) of the boat.
KVANT RI Sarmat EO/FCS
The main mast of Gurza-M class boat. Photo: Ministry of Defense of Ukraine

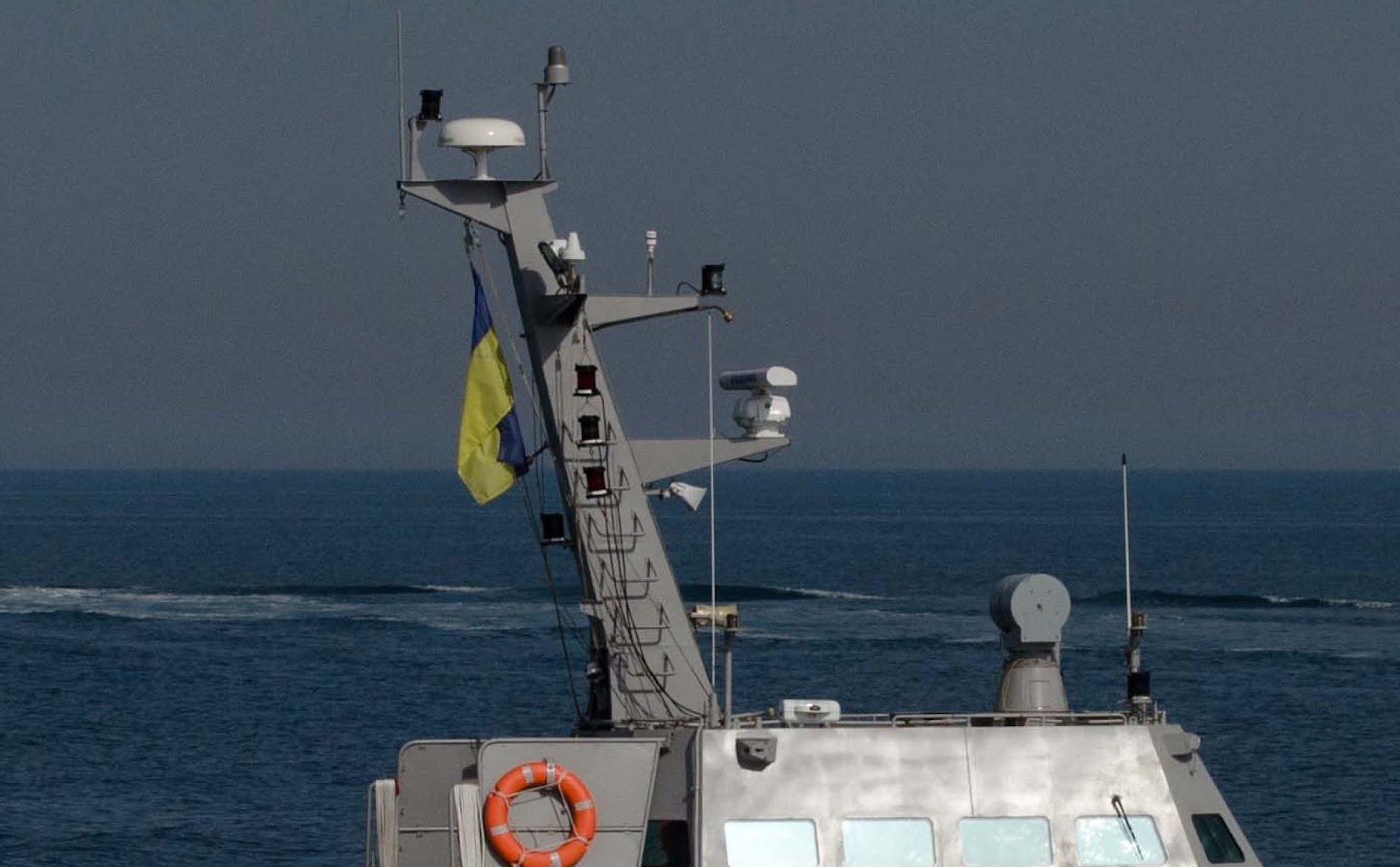

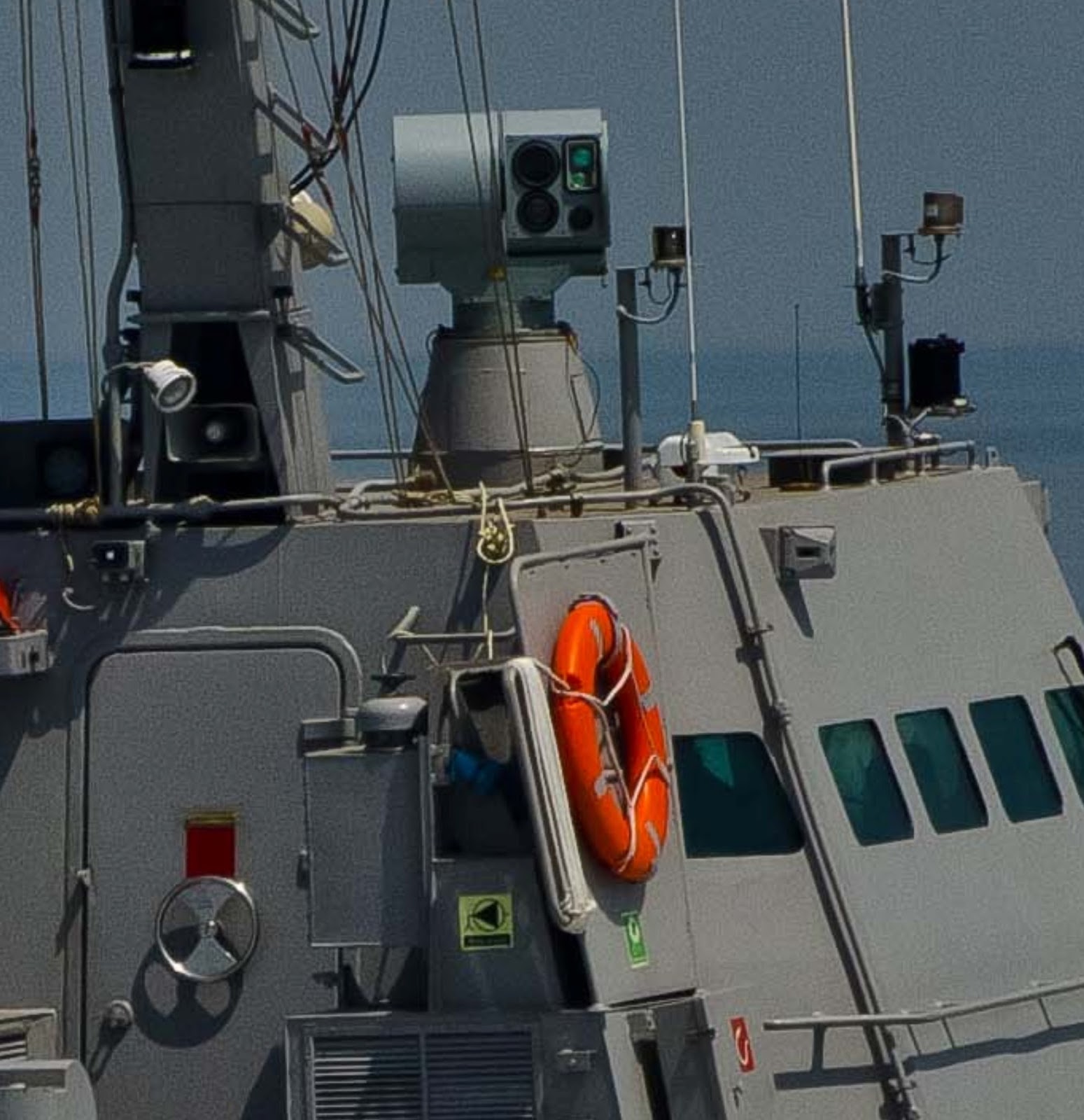

SARMAT EO sensor and warning receivers. Photo: Ministry of Defense of Ukraine
The mast. Photo: www.mil.gov.ua
Despite the fact that Ukraine acquires new boats for its Navy after many years, there is a lot of criticism about the design. There are those who claim that the design was “succesfull” and the order reached the high number of 20 boats because its manufacturer is the Leninska Kuznya (Lenin’s Forge) shipyard, owned by President Petro Poroshenko, the current president of Ukraine. Moreover, the boats are completely inadequate for confronting the Russian fleet, even small missile boats, as they lack completely medium-range anti-ship missile capabilities.

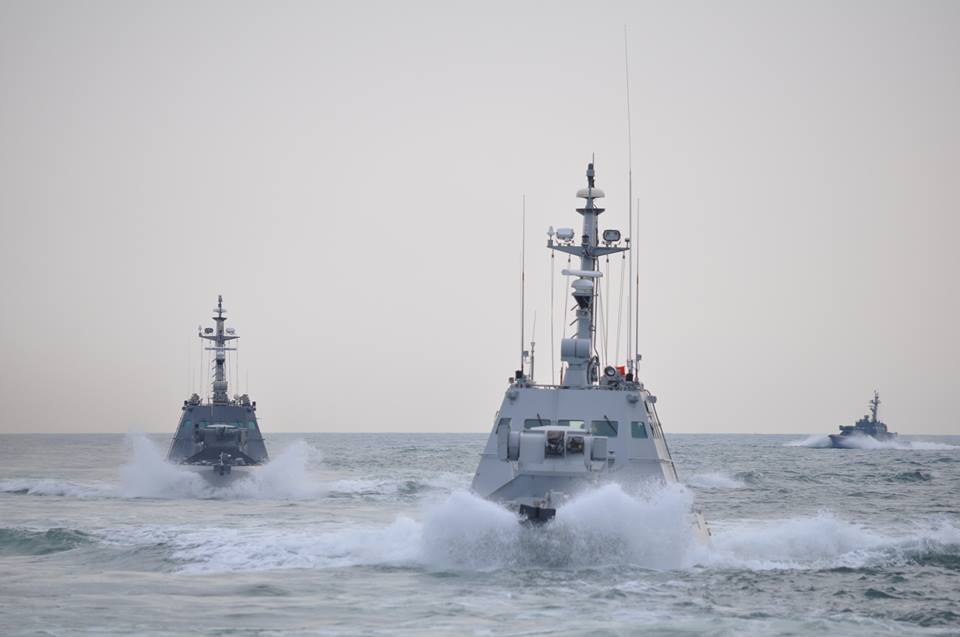

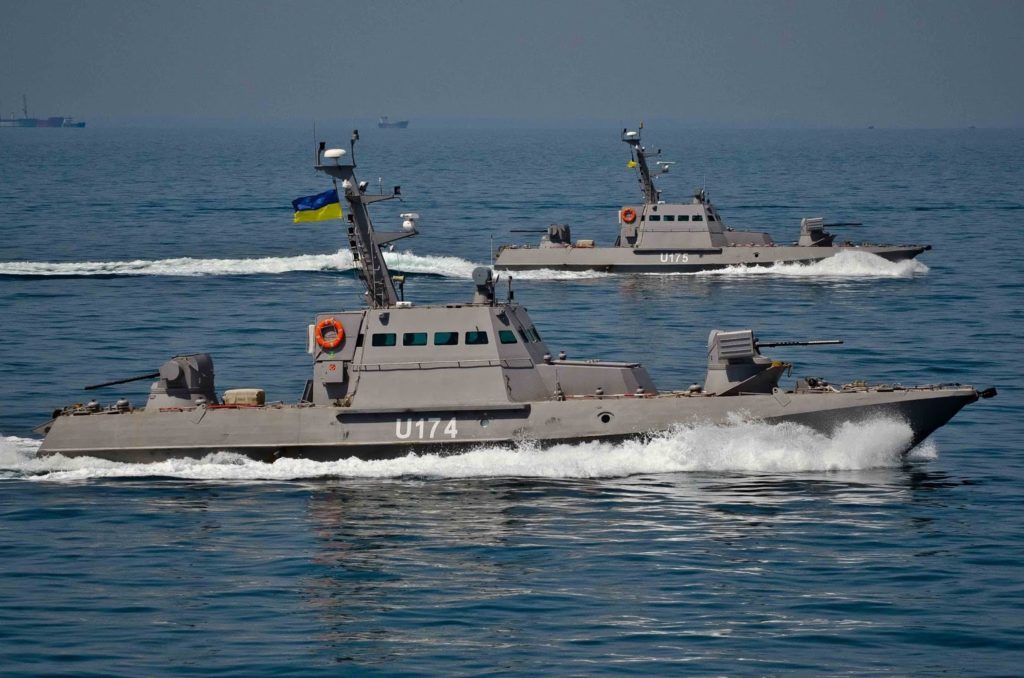

Gurza-M boats in formation. Source.
Gurza-M boats in formation. Source.
In September 30, 2017, the Ukrainian military portal, referring to an anonymous source, named a list of important problems that significantly limit the capabilities of the Gyurza-M boats, to form the basis for the “mosquito fleet” of Ukraine, that were discovered during sea trials and operations:
- Insufficient seaworthiness – due to the small displacement Gyurza-M is able to go into the sea at waves only up to 4 points .
- Limited weapons capabilities – Gyurza-M can use weapons at waves only up to 2 points.
- Missing anti-ship weapons – Gyurza-M has a 30-mm cannon and Barrier ATGM, which allows the boat to fight only boats of the same displacement, and at a short range. In addition, anti-tank missiles have not been installed on boats, and pilot launches have not been conducted on the water.
- Low patrol range – despite the fact that the boat is sufficient for such a class of autonomy (5 days), and the range (700 miles), the range of patrol is limited to only 12 miles due to the small size of the boat that means less supplies for the crew. Also the speed is very low for such vessels.

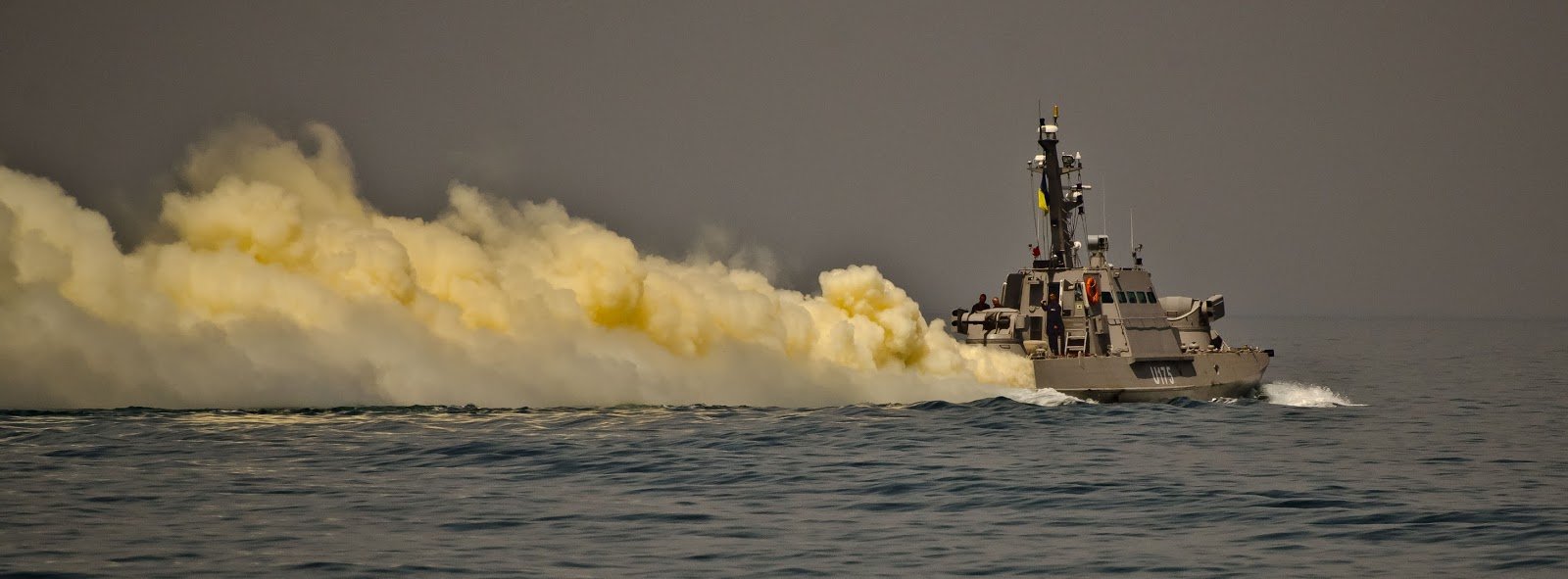

Smoke screen. Via Ministry of Defense
Gurza-M boats. Via Ministry of Defense
Gurza-M class armored artillery boat of the Ukrainian Navy
Nevertheless, Ukraine needs urgently a large number of armed boats to protect its borders. Gurza-M is cheap to build in comparison with other European designs and it looks at least on paper very well equipped for a 50-ton vessel. It is noticeable also that the design uses Ukrainian-built equipment in a large extent. Combat capable or not under all-weather conditions, I cannot say for sure if this is what Ukraine needs now, however the new boat is quite agile, well-protected and carries a very heavy armament for its size. An enlarged Gurza-M variant, with two times the length of project 58155 and at least 8 times its displacement, equipped with a modern medium range anti-ship missile such as MBDA Marte Mk2, and secondary armament Katran-M turrets except a 76mm main gun, could be the ideal solution for the Ukrainian Navy and a vessel that Ukraine could afford to build in numbers (6-8 vessels). Then the Gurza-M class production could stop at the 8-10 units dedicated to patrol only rivers and lakes. The decision though has been taken and the Desert Vipers-M will form the basis of the new Ukrainian naval fleet. You can watch a recent video of the class here.

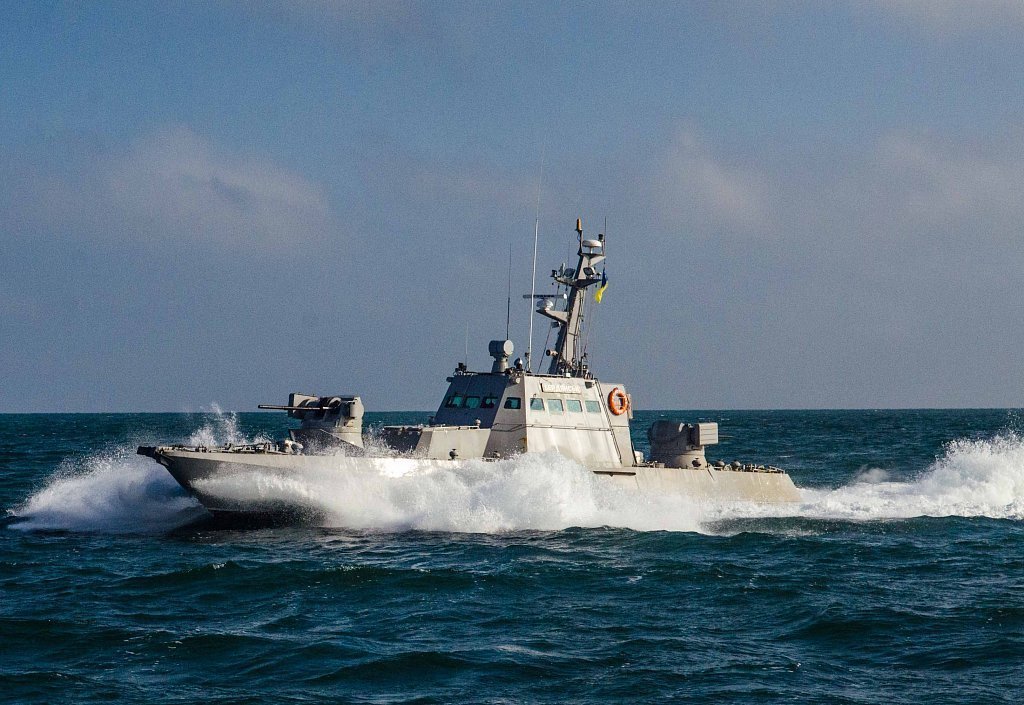

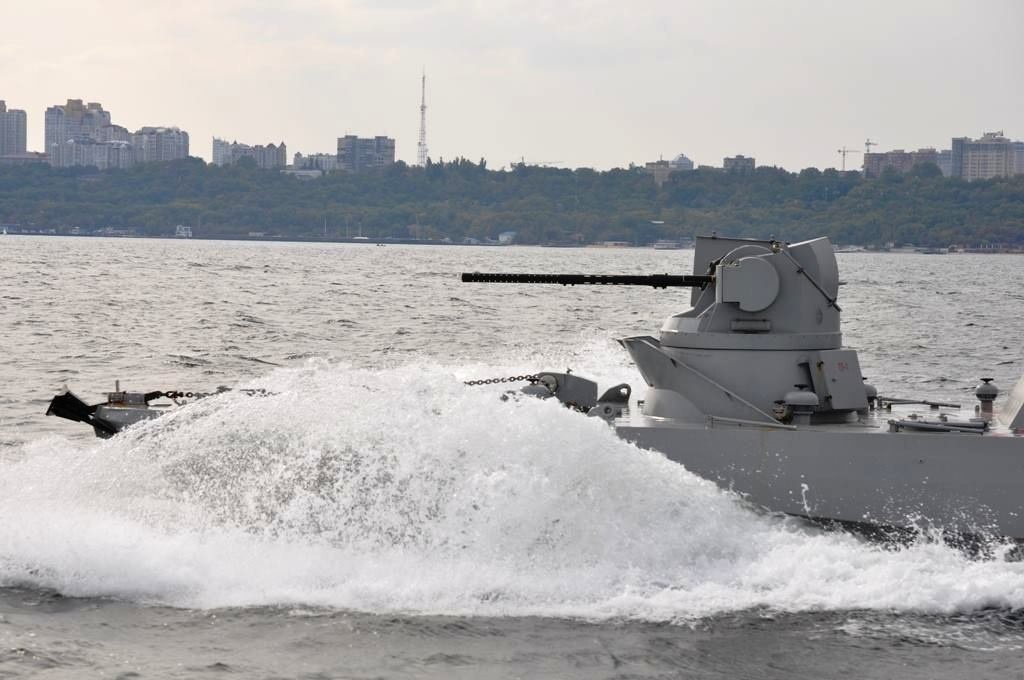

A Desert Viper-M in high speed. Photo: MoD of Ukraine

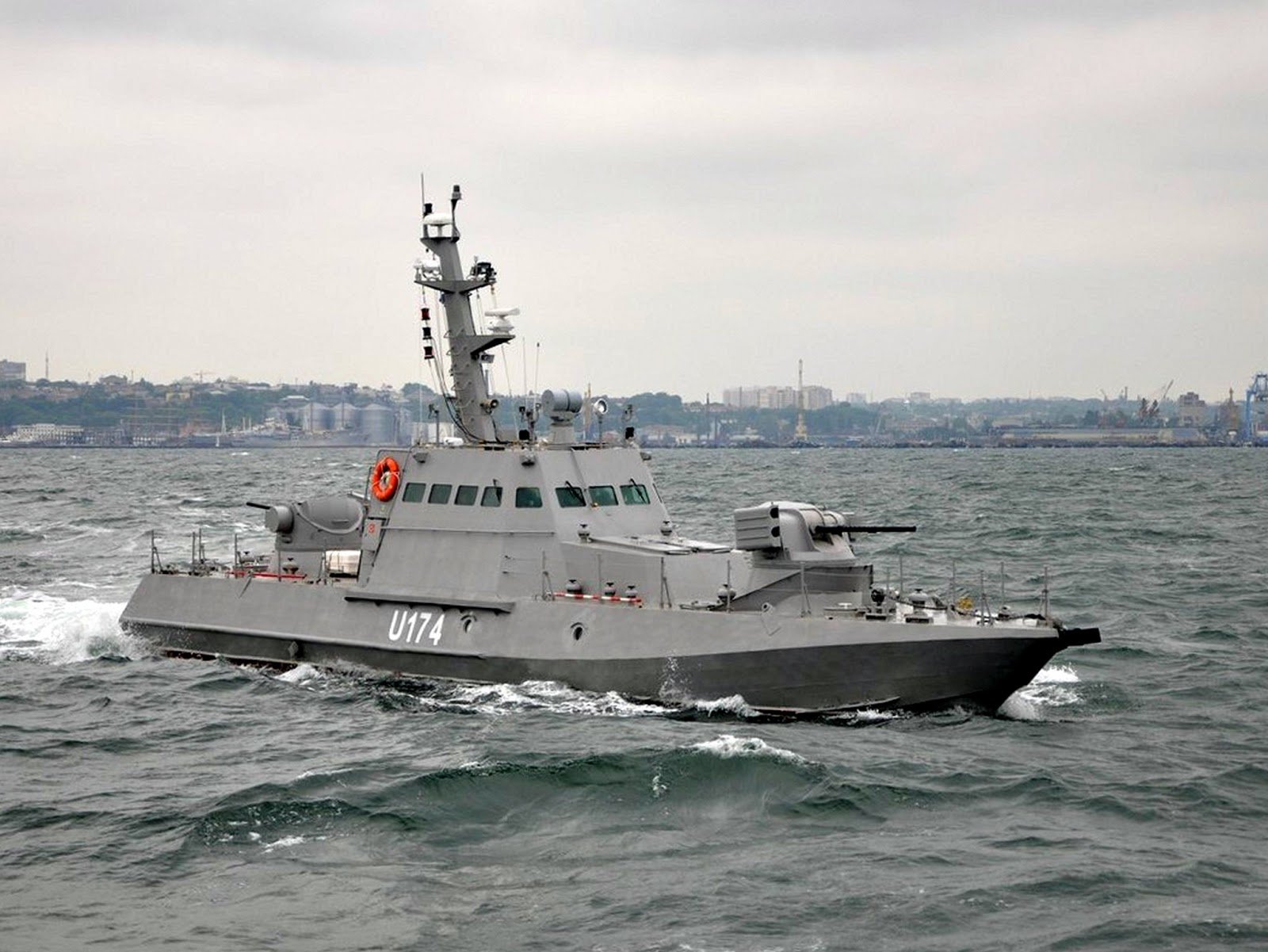

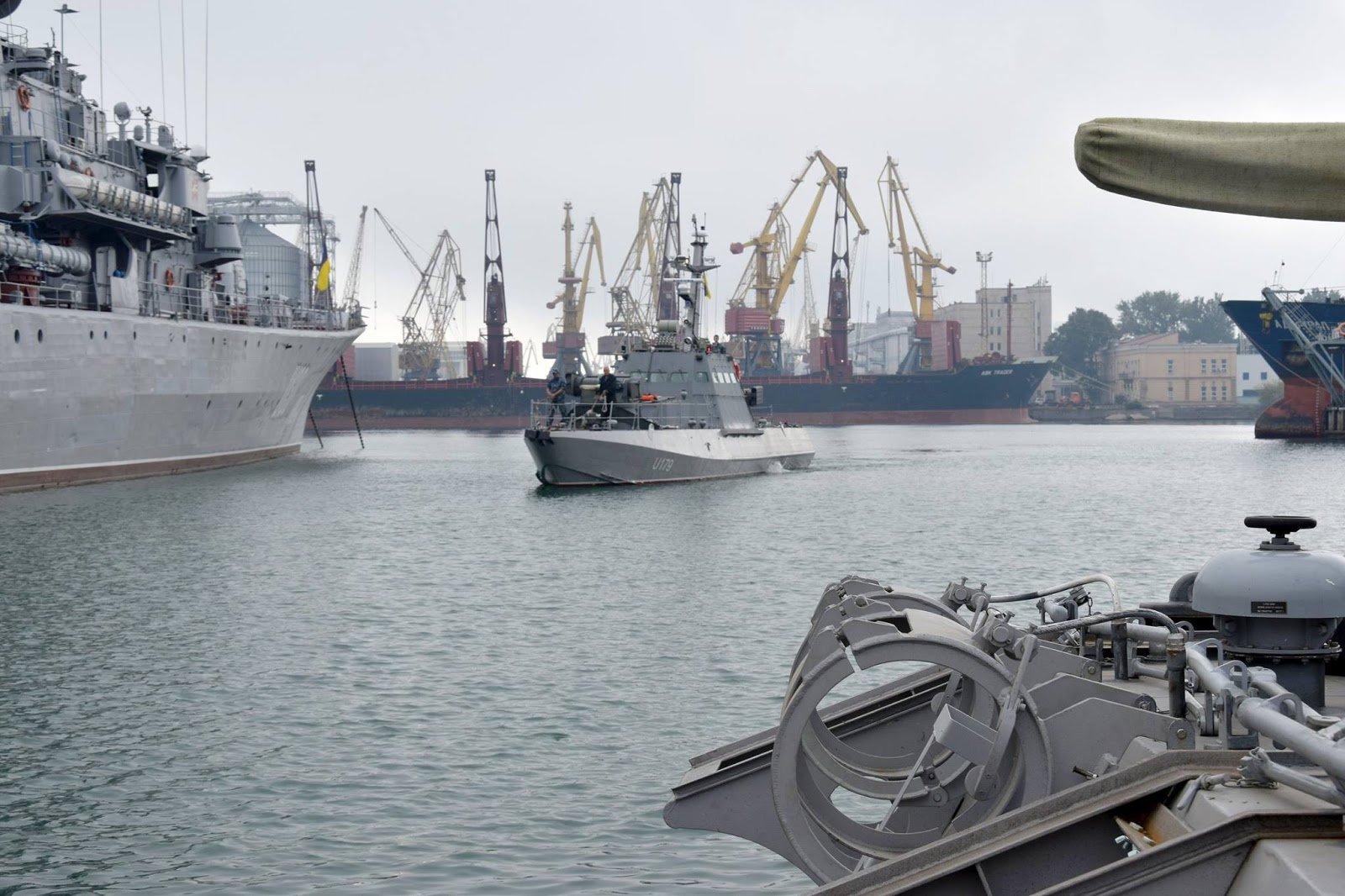

Akkerman (U-174) lead ship of the class. Photo: Ministry of Defense of Ukraine
