Originally published on Islamic Word News.

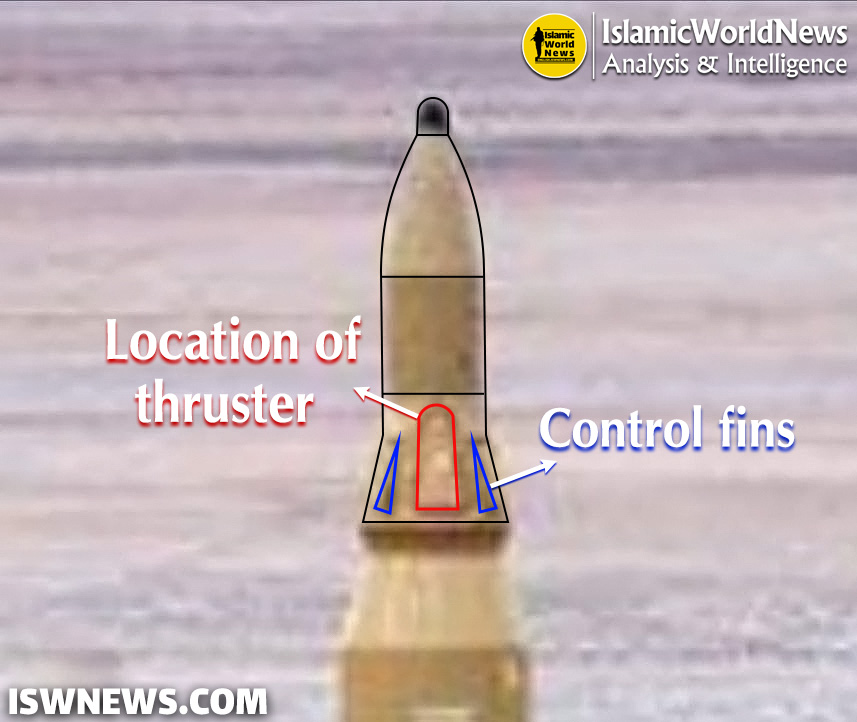

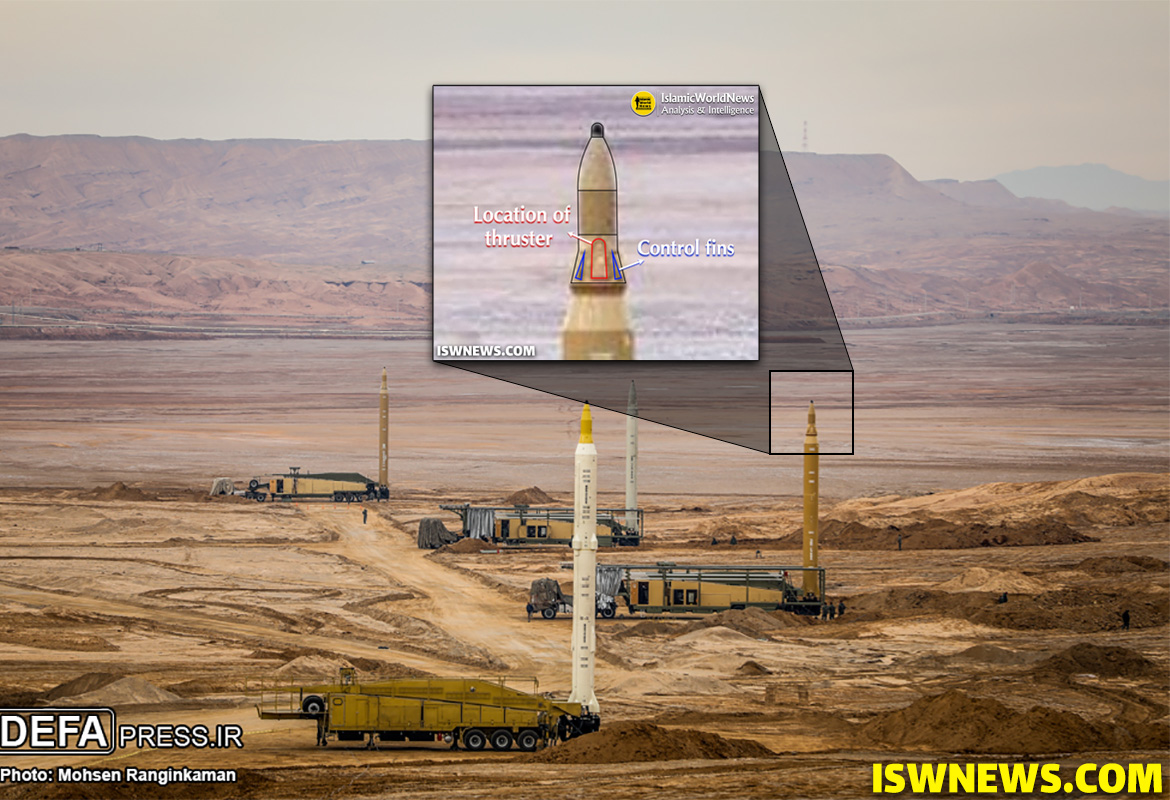

On the last day of the “Great Prophet 17” exercise, Iran unveiled for the first time the exo-atmospheric trajectory maneuvering technology of its detachable warheads for Qadr medium-range ballistic missile.
The technology or maneuverability of warhead outside atmosphere is performed with the help of pressurized gas thrusts or dual liquid fuel, and by changing the direction of the warhead, the trajectory is variable and the exact direction of the warhead is unpredictable. Therefore, this capability greatly reduces the chances of an air defense missile hitting a warhead.
The exo-atmospheric trajectory maneuvering technology, in addition to increase accuracy, guiding and maneuvering of Qadr missile in the atmosphere enhances its penetrability against missile defenses.
The maneuverability of medium- to high-range ballistic missile warheads can be achieved in two ways: maneuverability outside the atmosphere and hypersonic flight in the atmosphere. Considering the challenges of hypersonic wave rider warheads such as temperature management, guidance, materials and manufacturing process, the exo-atmospheric maneuvering method seems to be the most optimal option considering the performance, cost and time to upgrade conventional ballistic missile warheads in order to escape the air defense missiles.
For example, in this method, the old warheads can be upgraded and there is no need to use new complex and expensive refractory materials; The base design of the warheads does not change much and there is no need to design from the base.
According to studies, apparently the only country that has officially unveiled and used exo-atmospheric maneuvering technology so far is Russia and the Topol-MR intercontinental ballistic missile. Now, with this unveiling, Iran is one of the owners of this technology.
Click to see full-size image
Changing the direction of warhead in near space or vacuum alone doesn’t do much good, since it doesn’t change the ballistic trajectory (the path). It’s not enough since upon entering the thicker atmosphere (as soon as %5-%10 of atmospheric pressure), aerodynamics kick in and quickly revert it. In the thicker part of atmosphere we can change the direction a little bit by fins but then it’s something totally different from vacuum thrusters. It’s the case for separate warheads, the single-body missiles could use their thrust-vectoring and there’s really no need for additional weight of attitude control.
But if you are able to thrust the separated warhead in any or a combination of orbital 3 axis then you successfully changed the trajectory. depending on the velocity of object and it’s apogee, even the smallest amount of thrust can move the impact point or the overall range significantly.
A combination of the two methods is even better for a single re-entry vehicle, because the opponent can only predict where it doesn’t probably hit, leaving them with a large possible impact area (measured in hundreds of square kilometers) for an apogee of about 2,000 km. And that’s for a conventional missile with the price tag of a fraction of any ABM countermeasure. That’s a good preventive move, but against a sane adversary not the people who in a war of choice see an opponent’s %70 destruction rate against their own %60 as some kind of win.
