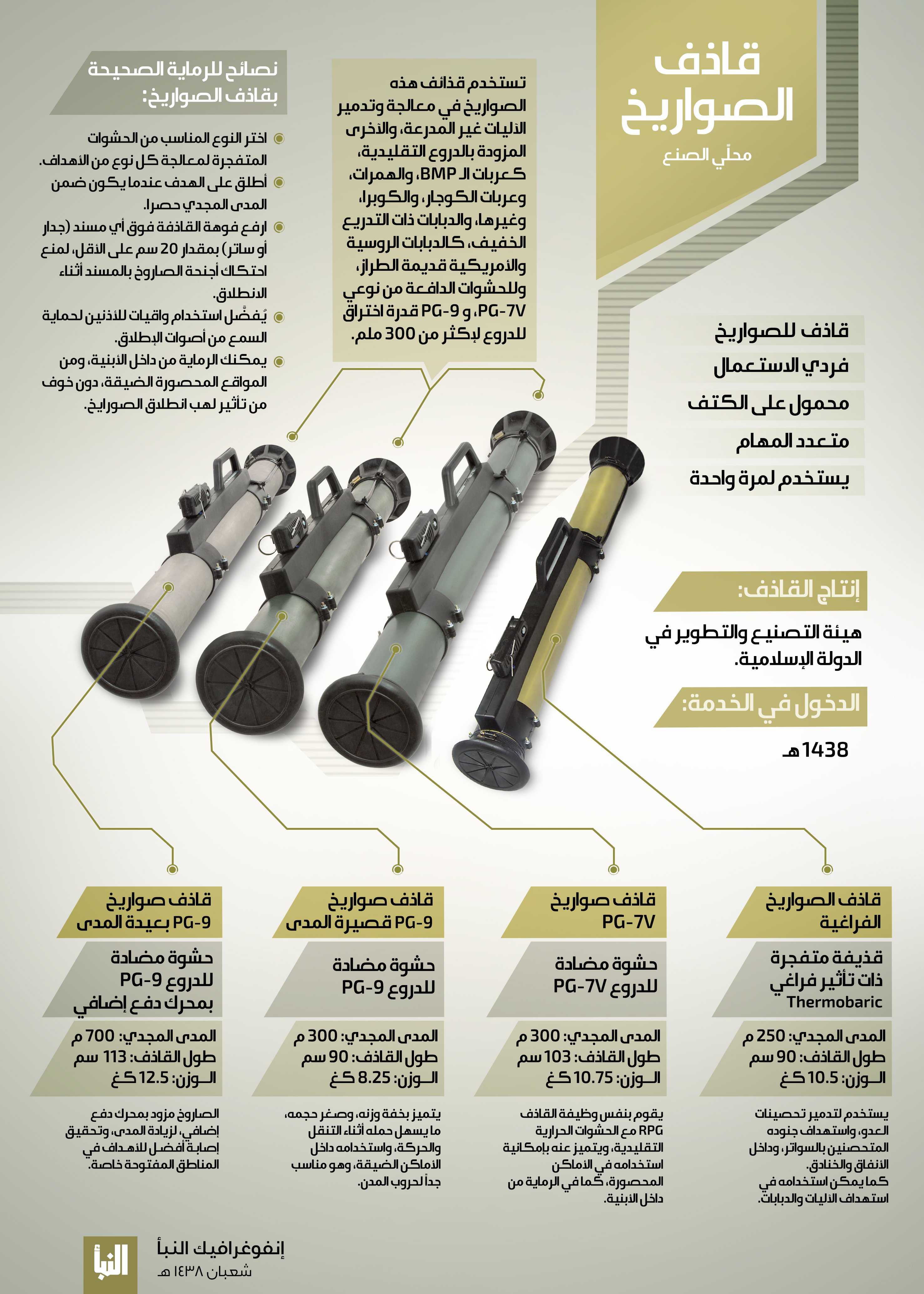

The ISIS-linked Magazine Al-Nabaa has published an infographics containing valuable information about ISIS famous DIY rocket launchers.
According to the infographics, the launchers were manufactured by the “Industrialization and Development Authority of the Islamic State ” and entered the service in 2017. They were presented as a shoulder-mounted, multi-role, one-time use rocket launcher that can be used by one fighter.
Click to see the full-size image
According to Al-Nabaa, these launchers are used to destroy unarmored vehicles and vehicles equipped with conventional armor such as BMP-1, Humvee, Cougar, Cobra, as well as old Russian- and American-made battle tanks. PG-7V and PG-9 rockets have armor penetration capacity above 300 mm.
There are four types of ISIS DIY rocket launchers:
- The thermobaric rocket-launcher armed with a thermobaric rocket, with a range of 250 meters, and the length of the 90 cm and weighing 10.5 kg. It is used to destroy fortifications and to target enemy infantry behind the barriers, inside tunnels and trenches, and can be used against vehicles and battle tanks.
- The PG-7V missile launcher is armed with a PG-7V rocket . It has a range of 300 meters and a length of 103 cm. It weighs 10.75 kg. It has a HEAT warhead for penetrating armor. Unlike RPG-7 launcher, it can be used in narrow spaces or inside buildings.
- The short-range PG-9 rocket launcher armed with a PG-9 rocket – for SPG-9 recoilless gun – has a range of 300 meters, and the length of 90 cm, weighing 8.25 kg. It is considered the lightest launcher, suitable for urban warfare. It can also be used in narrow areas.
- The PG-9 long range rocket launcher is armed with a PG-9 rocket with an additional booster. It has a range of 700 meters and 113 cm long, weighing 12.5 kg and is considered the heaviest and farthest range suitable for open areas.
The Al-Nabaa magazine has attached tips on the correct use of the launchers, including the use of the right type of rocket launcher for each target. For example: shooting at the target when inside the range, lifting the nozzle of the launcher over any wall or edge 20 cm, use the ear protectors during the shoots, the possibility of launching rockets from narrow spaces or inside buildings without worrying about rocket fire.
ISIS DIY rocket launchers not been noticed so far in the Syrian territory, but the terrorist group is actively using it in the Iraqi city of Mosul.
